1993 Honda CBR 600 F2 partsfiche

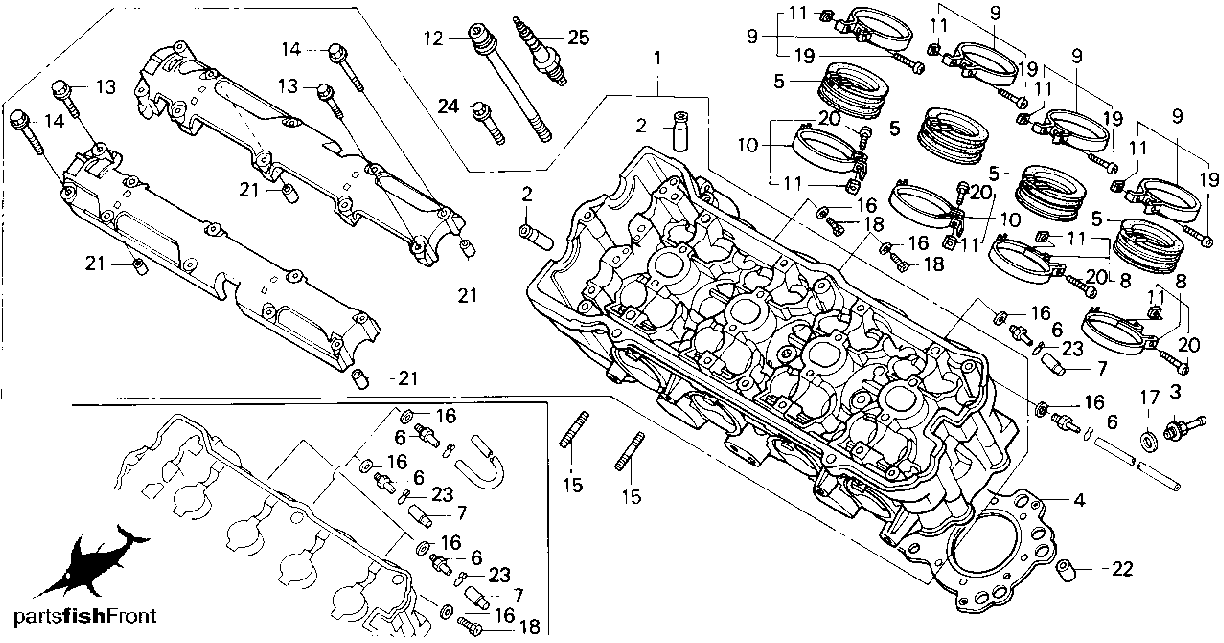

919293949596 cylinder head
| no. | description | part number | list price
|
|---|
| 1
| CYLINDER HEAD ASSY.
| 12010-MAL-770
| $1,148.69
|
| 2
| GUIDE, VALVE (OS)
| 12204-MV9-315
| $10.43
|
| 4
| GASKET, CYL HD
| 12251-MAL-601
| $61.74
|
| 5
| INSULATOR
| 16211-MV9-670
| $9.25
|
| 6
| JOINT, BOOSTER
| 16214-MB0-000
| $3.12
|
| 7
| CAP, BOOSTER
| 16215-MV4-000
| $1.71
|
| 8
| BAND A, INSULATOR
| 16217-MV9-670
| $5.62
|
| 9
| BAND B, INSULATOR
| 16218-MV9-670
| $5.45
|
| 10
| BAND C, INSULATOR
| 16219-MV9-670
| $5.12
|
| 11
| NUT, SQUARE (5MM)
| 16222-MV4-300
| $1.09
|
| 12
| BOLT, SOCKET (9X95)
| 90007-MV9-671
| $6.66
|
| 13
| BOLT, FLANGE (6X37)
| 90016-KT7-000
| $1.62
|
| 14
| BOLT, FLG (6X45.5)
| 90017-MA6-000
| $1.86
|
| 15
| BOLT, STUD (8X24)
| 90035-MM5-000
| $2.89
|
| 16
| WASHER (5MM)
| 90452-323-000
| $0.75
|
| 18
| BOLT, SLOT (5X8)
| 92301-05008-0A
| $0.48
|
| 19
| SCREW, PAN (5X28)
| 93500-05028-0G
| $0.26
|
| 20
| SCREW, PAN (5X32)
| 93500-05032-0G
| $0.26
|
| 21
| PIN, DOWEL (8X20)
| 94301-08200
| $1.03
|
| 22
| PIN, DOWEL (10X16)
| 94301-10160
| $1.00
|
| 23
| CLIP, TUBE (B7)
| 95002-02070
| $0.57
|
| 24
| BOLT, FLANGE (6X35)
| 95701-06035-00
| $0.60
|
| 25
| SPARK PLUG (U27FER9)
| 98059-59926
| $6.37
|
