1993 Honda CBR 600 F2 partsfiche

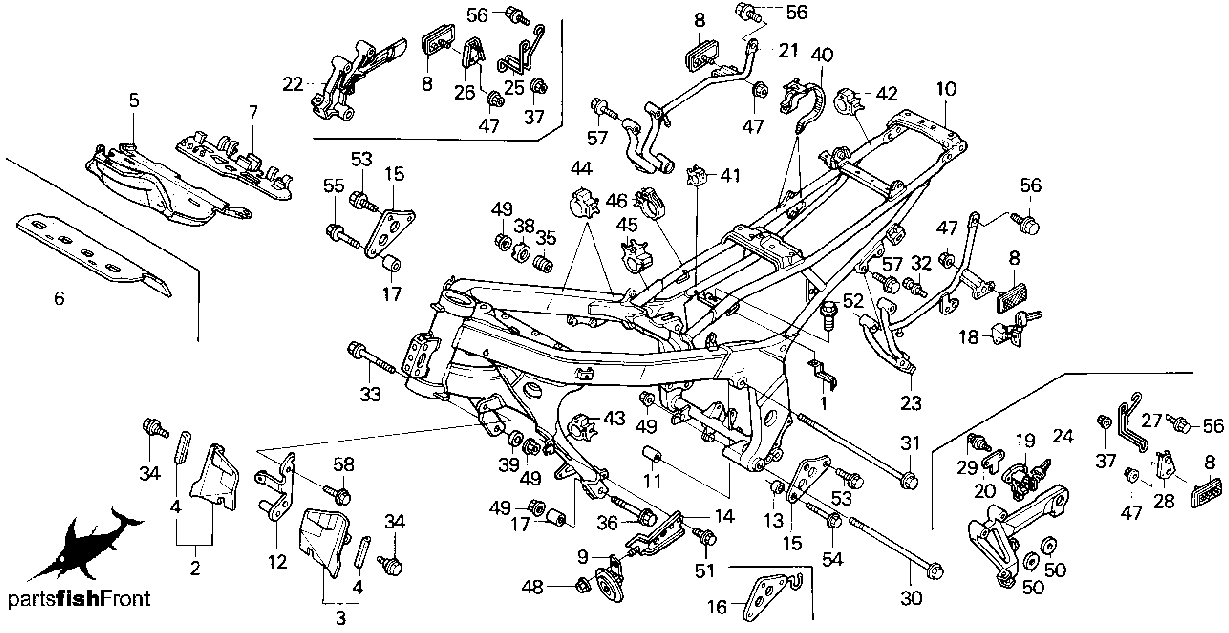

919293949596 frame
| no. | description | part number | list price
|
|---|
| 1
| STAY, IDLE ADJUST
| 17441-MV9-000
| $19.80
|
| 5
| GUARD A, HEAT
| 19125-MV9-000
| $51.97
|
| 7
| GUARD B, HEAT
| 19126-MV9-000
| $17.63
|
| 8
| REFLECTOR, REFLEX
| 33741-MS6-921
| $9.06
|
| 9
| HORN COMP. (LOW)
| 38120-MV9-008
| $42.06
|
| 10
| FRAME COMP. *NH146M*
| 50100-MV9-010ZA
| $1,383.28
|
| 10
| FRAME COMP. *NH146M*
| 50100-MV9-771ZA
| $1,453.29
|
| 11
| COLLAR, ENG HGR
| 50185-MV9-000
| $9.25
|
| 13
| COLR, R. FR. ENG HGR
| 50353-MS9-750
| $5.62
|
| 14
| STAY, HORN
| 50359-MV9-000
| $14.28
|
| 15
| PLATE, ENG HGR CTR
| 50501-MV9-000
| $4.31
|
| 16
| PLATE, L.
| 50502-MAL-600
| $6.22
|
| 17
| COLLAR, ENG HGR
| 50505-MV9-000
| $6.89
|
| 18
| HOLDER ASSY., HELMET
| 50710-GB4-007
| $35.86
|
| 20
| PLATE, BACK
| 50711-MV9-930
| $4.00
|
| 21
| HOLDER COMP., R.
| 50750-MV9-000
| $73.51
|
| 23
| HOLDER COMP., L.
| 50760-MV9-000
| $87.08
|
| 30
| BOLT, FLG (10X260)
| 90101-KE8-000
| $7.08
|
| 31
| BOLT, ENGINE HANGER
| 90104-MV9-000
| $9.25
|
| 32
| BOLT, SPECIAL (6X10)
| 90107-KM9-000
| $1.62
|
| 33
| BOLT, FLANGE (10X67)
| 90107-ML7-000
| $3.42
|
| 34
| BOLT, FLANGE (6MM)
| 90112-GC6-000
| $2.29
|
| 35
| COLLAR
| 90116-KAF-000
| $12.72
|
| 36
| BOLT, FLANGE (10X80)
| 90153-MT3-000
| $4.75
|
| 37
| NUT, U (6MM)
| 90301-MG3-000
| $3.89
|
| 38
| NUT, LOCK (20MM)
| 90341-KV3-700
| $5.00
|
| 39
| WASHER (10.5X24X5)
| 90401-MV9-000
| $2.52
|
| 40
| CLIP (15)
| 90690-GHB-601
| $1.51
|
| 41
| CLIP, CABLE (8MM)
| 90690-GHB-631
| $1.43
|
| 42
| CLIP, CABLE (10MM)
| 90690-GHB-641
| $1.43
|
| 44
| CLIP, CABLE (15MM)
| 90690-GHB-651
| $1.43
|
| 45
| CLIP, CABLE (25MM)
| 90690-GHB-671
| $1.43
|
| 46
| CLIP, CABLE (30MM)
| 90690-GHB-681
| $1.63
|
| 47
| NUT, FLANGE (5MM)
| 94050-05000
| $0.45
|
| 51
| BOLT, FLANGE (6X10)
| 95701-06010-07
| $0.52
|
| 53
| BOLT, FLANGE (8X16)
| 95701-08016-00
| $0.66
|
| 54
| BOLT, FLANGE (10X40)
| 95701-10040-00
| $0.89
|
| 55
| BOLT, FLANGE (10X50)
| 95701-10050-00
| $0.97
|
| 56
| BOLT, FLANGE (8X16)
| 95801-08016-00
| $0.66
|
| 57
| BOLT, FLANGE (8X25)
| 95701-08025-00
| $0.82
|
