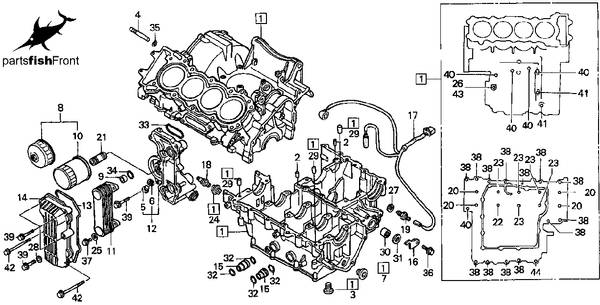

1998 Honda CBR 600 F3 partsfiche
crankcase set
| no. | description | part number | list price
|
|---|
| 1
| CRANKCASE SET
| 11000-MAL-A00
| $1,266.77
|
| 2
| ORIFICE (1.2MM)
| 11104-MW0-000
| $9.77
|
| 3
| BOLT, SEALING (14MM)
| 11106-657-320
| $4.03
|
| 4
| ORIFICE (2MM)
| 11208-MAL-600
| $5.06
|
| 5
| BOLT, SEALING (18MM)
| 12206-ML8-300
| $6.28
|
| 6
| WASHER, SEALING BOLT
| 12207-611-300
| $2.06
|
| 7
| BOLT, SEALING (20MM)
| 12208-PR3-000
| $3.38
|
| 8
| FILTER SET, OIL
| 15010-MW0-000
| $18.88
|
| 9
| COLLAR (20MM)
| 15328-MV9-670
| $2.11
|
| 10
| FILTER, OIL
| 15410-MM9-013
| $9.71
|
| 11
| CORE, OIL COOLER
| 15600-MAL-601
| $149.03
|
| 12
| BODY, OIL COOLER
| 15610-MAL-600
| $76.55
|
| 13
| GASKET
| 15615-MV9-670
| $5.86
|
| 14
| COVER, OIL COOLER
| 15621-MV9-670
| $80.29
|
| 15
| COLLAR, OIL COOLER
| 15622-MV9-670
| $2.38
|
| 16
| PLATE, SPINDLE
| 24612-MAL-600
| $5.02
|
| 17
| SUB-WIRE A
| 32101-MAL-J00
| $14.29
|
| 18
| SWITCH, OIL PRESSURE
| 35500-MJ4-024
| $23.14
|
| 19
| SWITCH, NEUTRAL
| 35600-KE8-003
| $10.28
|
| 20
| BOLT, UBS (8X100)
| 90004-MAL-A00
| $3.65
|
| 21
| BOSS, OIL FILTER
| 90019-MB0-000
| $4.88
|
| 22
| BOLT, UBS (8X88)
| 90024-MAL-A00
| $3.65
|
| 23
| BOLT, UBS (8X75)
| 90041-MAL-A00
| $3.65
|
| 24
| BOLT, SEALING (20MM)
| 90048-MAL-600
| $6.08
|
| 25
| WASHER (6.5X15)
| 90401-ZA0-000
| $0.65
|
| 26
| WASHER (8MM)
| 90442-028-000
| $0.89
|
| 27
| WASHER, NEUTRAL
| 90443-MJ6-000
| $0.97
|
| 28
| WASHER (6.5MM)
| 90463-ML7-000
| $1.62
|
| 29
| PIN, DOWEL (10X16)
| 90701-MV9-670
| $2.42
|
| 30
| BEARING (14X22X16)
| 91106-KM1-013
| $9.86
|
| 31
| OIL SEAL (14X22X5)
| 91203-KK3-830
| $2.15
|
| 32
| O-RING (17.3X2.4)
| 91304-PS5-003
| $1.68
|
| 33
| O-RING (50X2.5)
| 91305-KK3-830
| $2.60
|
| 34
| O-RING (19.8X2.4)
| 91310-PH7-000
| $1.32
|
| 35
| O-RING (6X1.5) (N0K)
| 91315-PC9-004
| $0.91
|
| 36
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
| 37
| BOLT, FLANGE (6X20)
| 95701-06020-00
| $0.45
|
| 38
| BOLT, FLANGE (6X35)
| 95701-06035-00
| $0.60
|
| 39
| BOLT, FLANGE (6X45)
| 95701-06045-07
| $0.78
|
| 40
| BOLT, FLANGE (6X50)
| 95701-06050-00
| $0.80
|
| 41
| BOLT, FLANGE (6X65)
| 95701-06065-00
| $0.89
|
| 42
| BOLT, FLANGE (6X90)
| 95701-06090-00
| $1.17
|
| 43
| BOLT, FLANGE (8X65)
| 95701-08065-00
| $0.97
|
| 44
| BOLT, FLANGE (10X75)
| 95701-10075-00
| $1.48
|
