1998 Honda CBR 600 F3 partsfiche

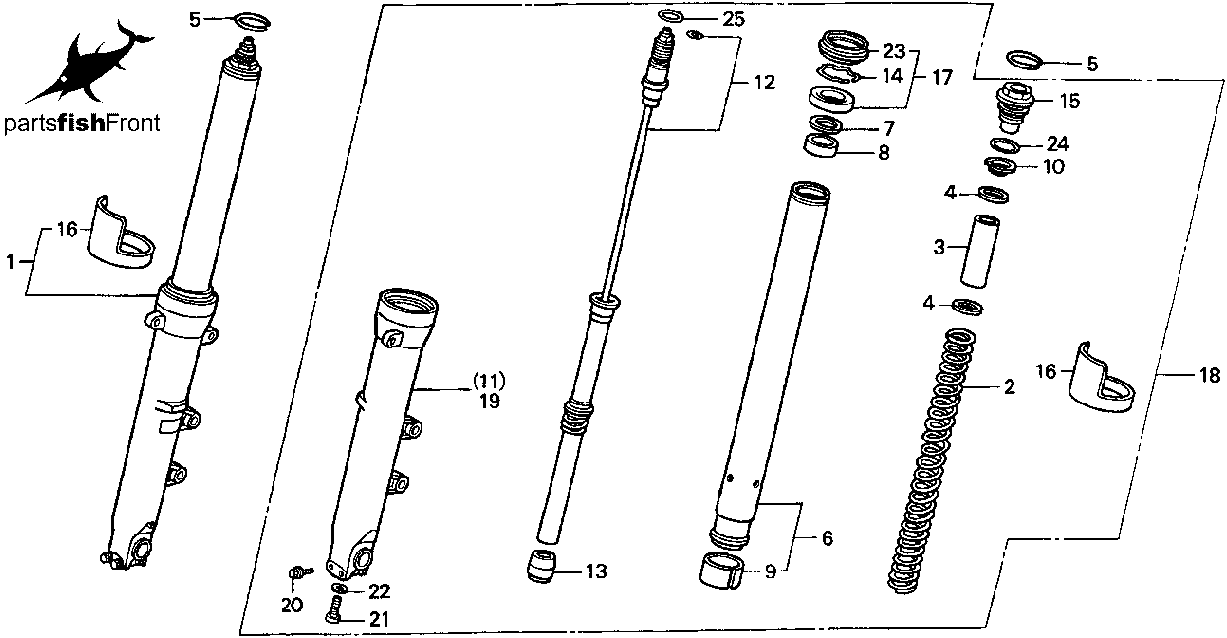

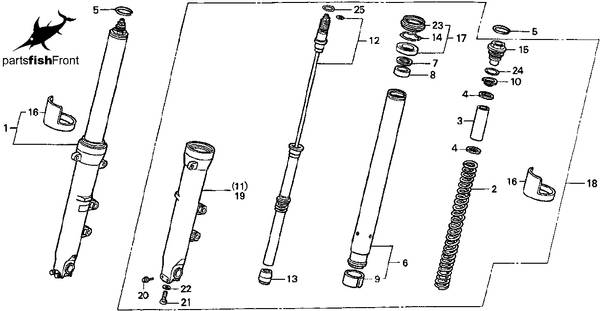

front fork
| no. | description | part number | list price
|
|---|
| 1
| FORK ASSY., R. FR.
| 51400-MAL-G01
| $413.60
|
| 2
| SPRING, FR. FORK
| 51401-MAL-G01
| $35.49
|
| 3
| COLLAR, SPRING
| 51402-MS2-003
| $9.15
|
| 4
| SEAT, SPRING
| 51403-KF0-003
| $2.71
|
| 5
| RING, STOPPER
| 51405-MB4-003
| $3.32
|
| 6
| PIPE COMP., FR. FORK
| 51410-MAL-601
| $194.38
|
| 7
| RING, BACK-UP
| 51412-MB4-003
| $5.26
|
| 8
| BUSH, GUIDE
| 51414-MN5-003
| $7.29
|
| 9
| BUSH, SLIDER
| 51415-MM8-003
| $8.71
|
| 10
| SEAT, SPRING
| 51415-MS2-003
| $6.08
|
| 11
| CASE, R. (LOWER)
| 51420-MAL-G01
| $155.02
|
| 12
| DAMPER COMP., FR.
| 51430-MAL-G01
| $143.46
|
| 13
| PIECE, OIL LOCK
| 51432-MS2-003
| $16.38
|
| 14
| RING
| 51447-KA4-711
| $2.55
|
| 15
| BOLT, FR. FORK
| 51454-KV3-781
| $30.22
|
| 16
| PROTECTOR, FORK PIPE
| 51460-MT3-611
| $5.86
|
| 17
| SEAL SET, FR. FORK
| 51490-MN8-305
| $18.08
|
| 18
| FORK ASSY., L. FR.
| 51500-MAL-G01
| $413.60
|
| 19
| CASE, L. (LOWER)
| 51520-MAL-G01
| $155.02
|
| 20
| BOLT, FLANGE (8X45)
| 90109-MR7-000
| $2.80
|
| 21
| BOLT, SOCKET (8MM)
| 90116-383-721
| $2.91
|
| 22
| WASHER (8MM)
| 90544-283-000
| $1.49
|
| 23
| DUST SEAL
| 91254-MM8-003
| $9.74
|
| 24
| O-RING (13.8X2.4)
| 91311-PH7-003
| $0.98
|
| 25
| O-RING (33.2X2.4)
| 91356-KF0-003
| $2.09
|
