1998 Honda CBR 600 F3 partsfiche

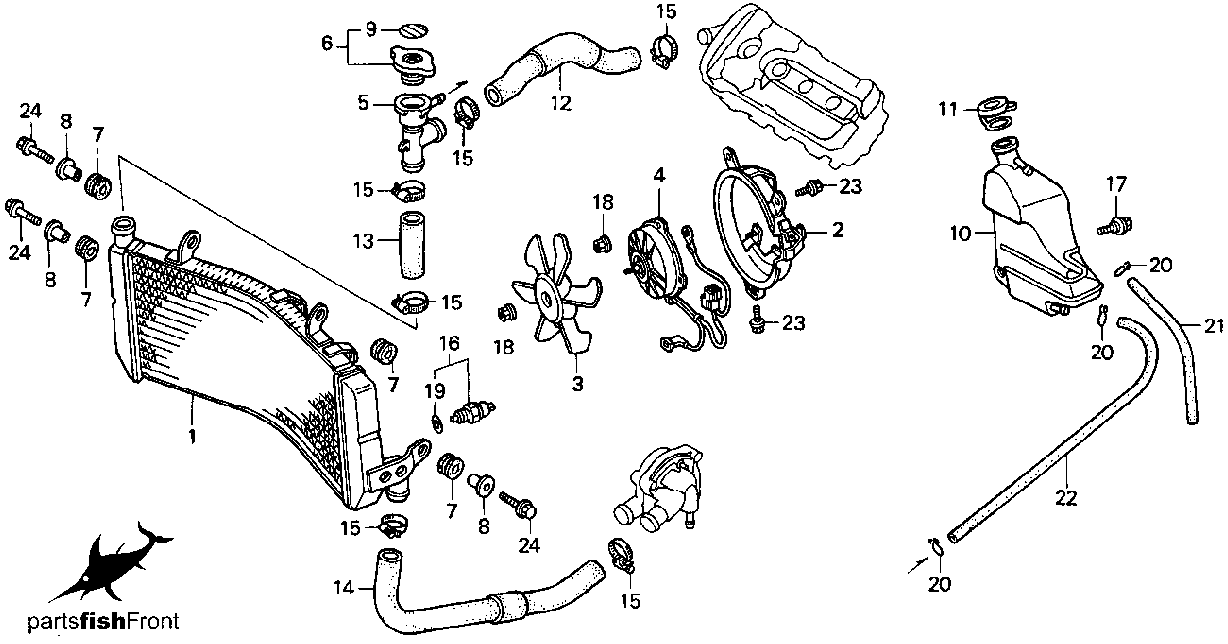

radiator
| no. | description | part number | list price
|
|---|
| 1
| RADIATOR COMP.
| 19010-MAL-601
| $528.55
|
| 2
| SHROUD COMP.
| 19015-MAL-601
| $48.72
|
| 3
| FAN COMP., COOLING
| 19025-MN4-003
| $30.20
|
| 4
| MOTOR ASSY., FAN
| 19030-MAL-601
| $153.91
|
| 5
| NECK, FILLER
| 19038-MAL-601
| $31.14
|
| 6
| CAP COMP., RADIATOR
| 19045-GBF-770
| $20.92
|
| 7
| RUBBER
| 19051-KA3-830
| $2.38
|
| 8
| RUBBER
| 19052-MN8-000
| $2.89
|
| 9
| SEAL, RADIATOR CAP
| 19055-MV9-921
| $4.80
|
| 10
| TK, RADIATOR RESERVE
| 19101-MV9-010
| $19.86
|
| 11
| CAP, RESERVE TANK
| 19104-MB0-700
| $6.65
|
| 12
| HOSE, RADIATOR
| 19501-MAL-600
| $22.29
|
| 13
| HOSE A
| 19502-MAL-600
| $7.88
|
| 14
| HOSE, RADIATOR
| 19505-MAL-600
| $19.29
|
| 15
| CLAMP (30-37MM)
| 19516-GAG-003
| $7.86
|
| 16
| SWITCH, THERMOSTAT
| 37760-MT2-003
| $45.46
|
| 17
| BOLT, FLANGE (6MM)
| 90111-162-000
| $1.86
|
| 18
| NUT, SERRATE (5MM)
| 90315-MK3-003
| $1.22
|
| 19
| O-RING (13.5X1.4)
| 91307-611-000
| $1.37
|
| 20
| CLIP, TUBE (B10)
| 95002-02100
| $0.65
|
| 21
| BULK HOSE (5.5X3000)
| 95005-55003-20M
| $15.15
|
| 22
| BULK HOSE (5.5X3000)
| 95005-55003-20M
| $15.15
|
| 23
| BOLT, FLANGE (6X10)
| 96001-06010-00
| $0.66
|
| 24
| BOLT, FLANGE (6X22)
| 96001-06022-00
| $0.82
|
