1998 Honda CBR 600 F3 partsfiche

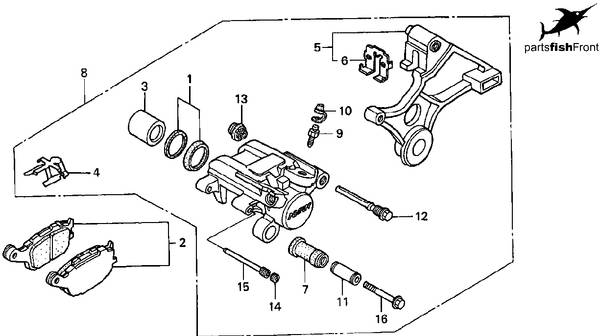

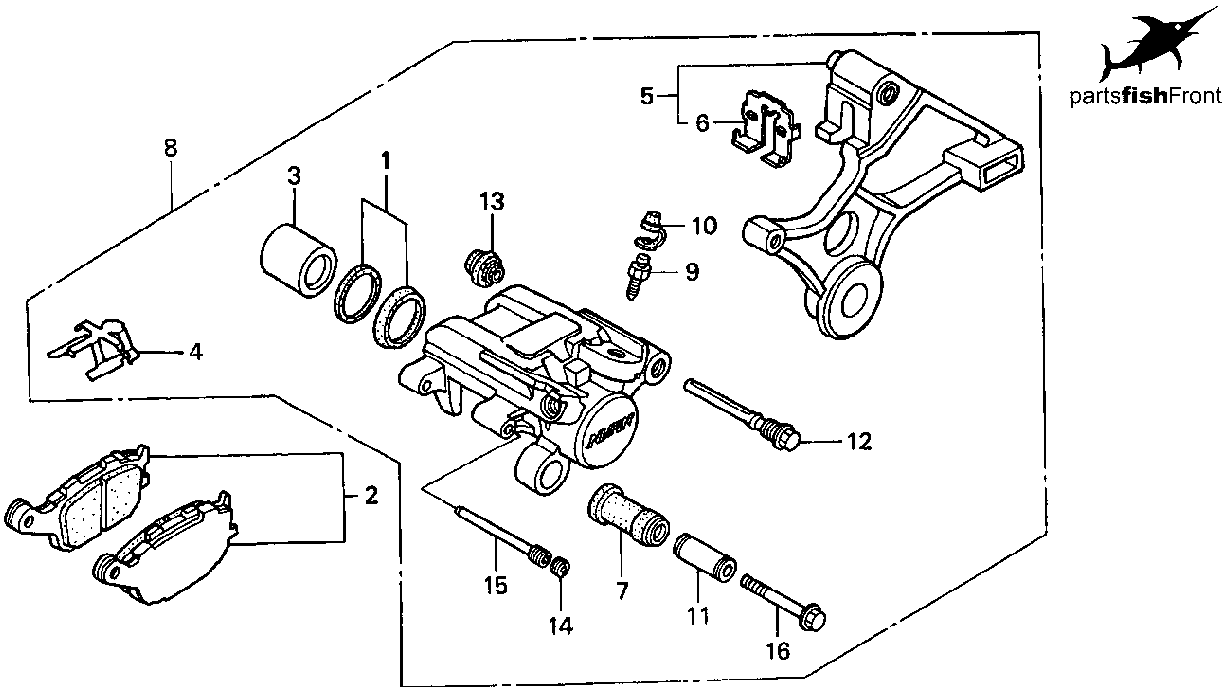

rear brake caliper
| no. | description | part number | list price
|
|---|
| 1
| SEAL SET, PISTON
| 06451-443-405
| $7.20
|
| 2
| PAD SET, RR.
| 43105-MW0-405
| $36.43
|
| 3
| PISTON
| 43107-KT7-761
| $20.66
|
| 4
| SPRING, PAD
| 43108-KT7-761
| $4.71
|
| 5
| BRACKET COMP., RR.
| 43110-MV9-006
| $127.74
|
| 6
| RETAINER
| 43112-MV9-016
| $5.82
|
| 7
| BOOT, SLEEVE
| 43132-KT7-761
| $4.63
|
| 8
| CALIPER SUB-ASSY.
| 43150-MV9-305
| $279.00
|
| 9
| SCREW, BLEEDER
| 43352-568-003
| $4.12
|
| 10
| CAP, BLEEDER
| 43353-461-771
| $2.86
|
| 11
| SLEEVE
| 45111-MA3-006
| $7.26
|
| 12
| PIN, BOLT
| 45131-MN9-006
| $8.71
|
| 13
| BOOT B
| 45133-MA3-006
| $3.08
|
| 14
| PLUG, PIN
| 45203-MG3-016
| $2.89
|
| 15
| PIN, HANGER
| 45215-ML7-922
| $5.83
|
| 16
| BOLT, FLANGE (8X49)
| 90180-MA3-006
| $2.75
|
