1998 Honda CBR 600 F3 partsfiche

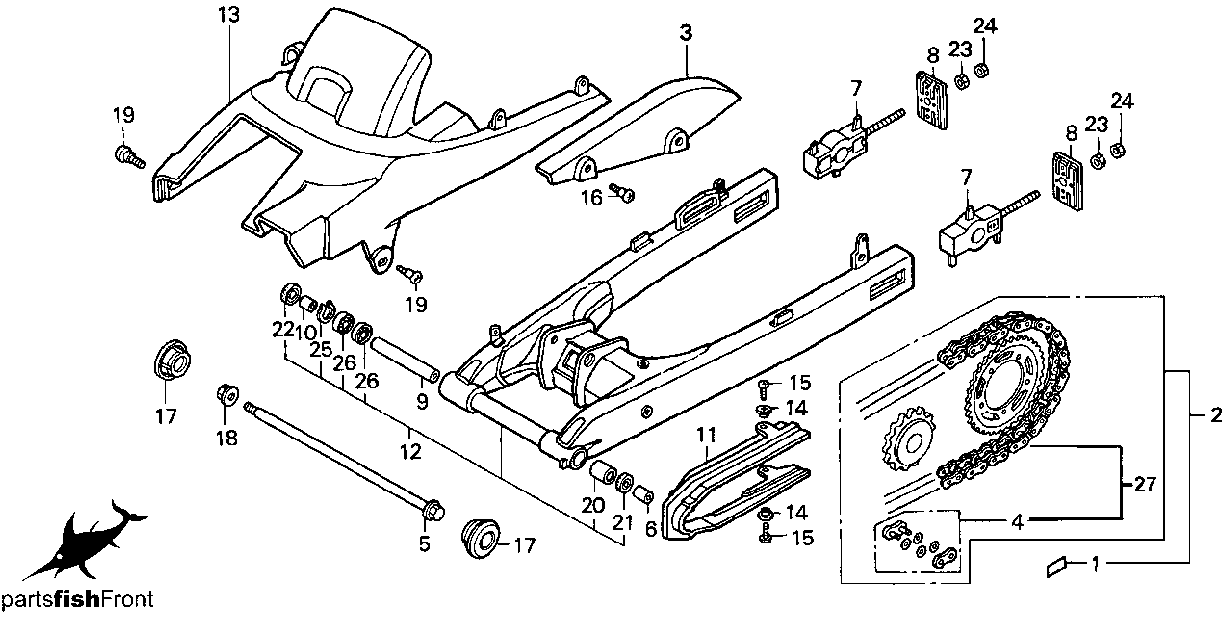

swingarm
| no. | description | part number | list price
|
|---|
| 3
| CASE, DRIVE CHAIN
| 40510-KY2-700
| $37.72
|
| 4
| MASTER LINK SET
| 40535-MAL-G02
| $4.88
|
| 5
| BOLT, SWINGARM PIVOT
| 52101-MAL-600
| $37.11
|
| 6
| COLLAR, L. PIVOT
| 52106-MT7-000
| $29.31
|
| 7
| TENSIONER, CHAIN
| 52120-MV9-010
| $21.63
|
| 8
| PLATE
| 52121-MV9-000
| $10.40
|
| 9
| COLLAR
| 52141-MAL-600
| $9.34
|
| 10
| COLLAR, R. PIVOT
| 52142-MAL-600
| $2.88
|
| 11
| SLIDER, CHAIN
| 52170-MAL-600
| $29.68
|
| 12
| SWINGARM *NH146M*
| 52200-MAL-305ZA
| $433.28
|
| 13
| FENDER, RR.
| 80201-MAL-A00
| $81.49
|
| 14
| COLLAR
| 81312-GJ5-000
| $1.80
|
| 15
| SCREW, PAN (6X16)
| 90156-MV9-000
| $1.20
|
| 16
| SCREW (6X10)
| 90165-MV9-000
| $2.68
|
| 17
| CAP, R.
| 90302-MN4-781
| $6.15
|
| 18
| NUT, U (14MM)
| 90305-GE8-003
| $3.35
|
| 19
| SCREW (6X11)
| 90381-MB2-000
| $2.43
|
| 20
| BEARING, NEEDLE
| 91071-MT7-003
| $12.45
|
| 21
| DUST SEAL (25X33X4)
| 91202-MAL-601
| $3.92
|
| 22
| DUST SEAL (23X35X5)
| 91214-MAL-601
| $4.25
|
| 23
| NUT, HEX. (8MM)
| 94001-08000-0S
| $0.45
|
| 24
| NUT, HEX. (8MM)
| 94030-08000
| $0.42
|
| 25
| CIRCLIP (35MM)
| 94520-35000
| $0.82
|
| 26
| BEARING (6003)
| 96100-60030-10
| $8.65
|
| 27
| CHAIN SET,DRIVE R
| 06405-MAL-P10
| $118.88
| 525, 108 links
|
