1998 Honda CBR 600 F3 partsfiche

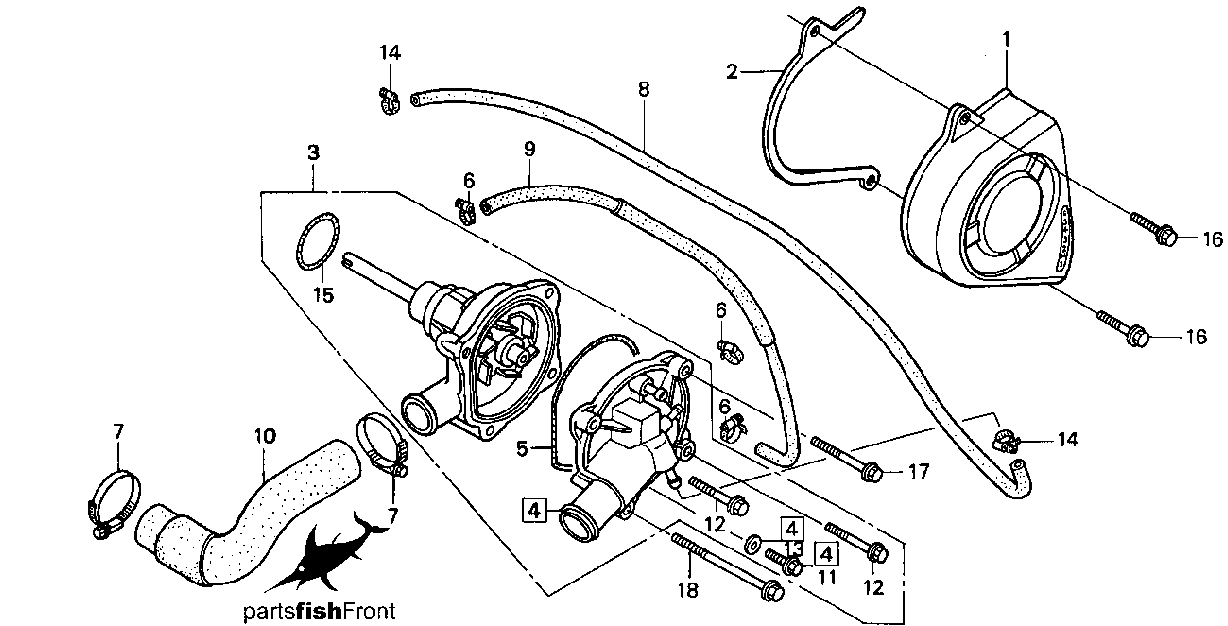

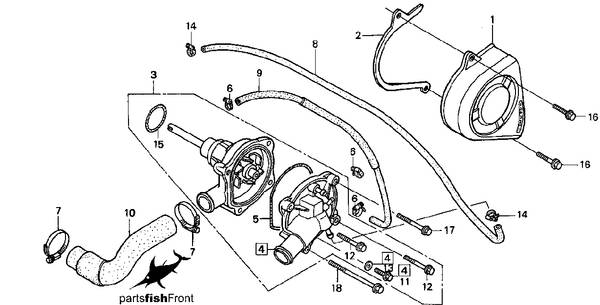

water pump
| no. | description | part number | list price
|
|---|
| 1
| COVER COMP., L. RR.
| 11350-MV9-670
| $31.46
|
| 2
| PLATE
| 11355-MV9-670
| $4.92
|
| 3
| WATER PUMP COMP.
| 19200-MAL-A00
| $115.26
|
| 4
| COVER, WATER PUMP
| 19220-MAL-A00
| $47.40
|
| 5
| GASKET
| 19226-ML7-000
| $2.54
|
| 6
| CLAMP, WATER HOSE
| 19507-MAL-600
| $2.97
|
| 7
| CLAMP (24-32MM)
| 19516-ML7-691
| $7.86
|
| 8
| HOSE, WATER
| 19520-MAL-A00
| $21.98
|
| 9
| HOSE, WATER PUMP
| 19521-MW0-670
| $21.42
|
| 10
| HOSE A, WATER
| 19525-MV9-670
| $13.03
|
| 11
| BOLT (6X12) (CT200)
| 90013-883-000
| $0.94
|
| 12
| BOLT, FLANGE (6X25)
| 90121-MV9-670
| $1.54
|
| 13
| WASHER (6.5MM)
| 90463-ML7-000
| $1.62
|
| 14
| CLAMP, WATER HOSE
| 90670-GHB-610
| $2.71
|
| 15
| O-RING (32.95X2.62)
| 91302-MB0-013
| $1.51
|
| 16
| BOLT, FLANGE (6X25)
| 96001-06025-07
| $0.65
|
| 17
| BOLT, FLANGE (6X35)
| 96001-06035-00
| $0.82
|
| 18
| BOLT, FLANGE (6X75)
| 96001-06075-00
| $1.17
|
