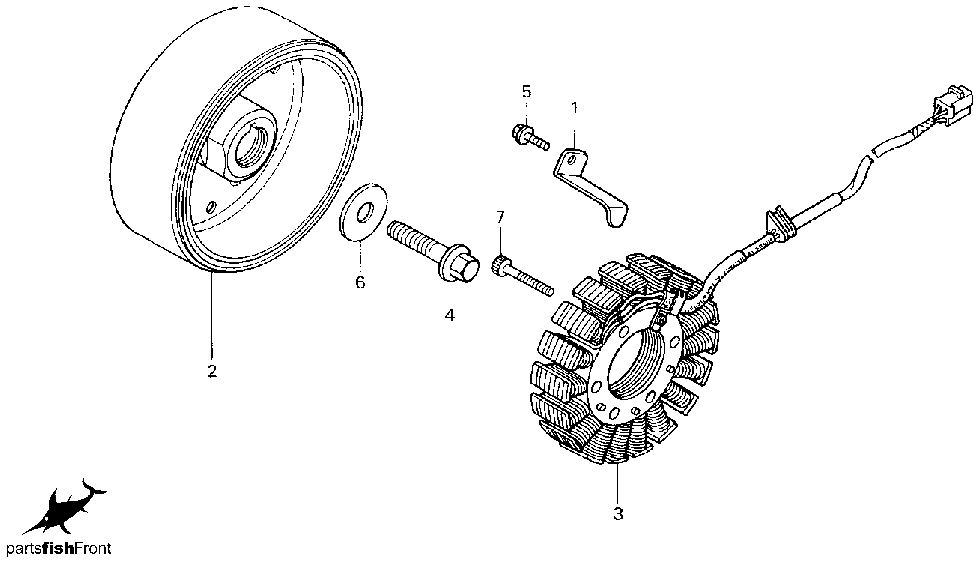

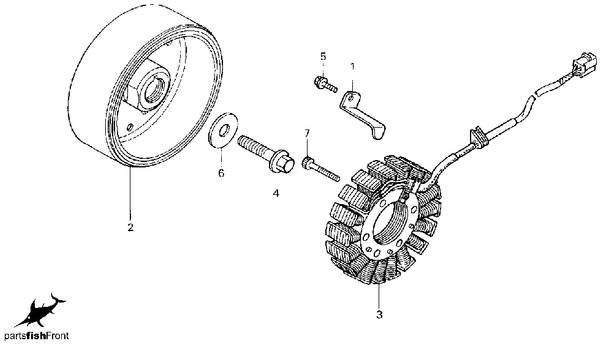

alternator
| no. | description | part number | list price |
|---|---|---|---|
| 1 | CLAMP | 11333-MBW-000 | $2.22 |
| 2 | FLYWHEEL COMP. | 31110-MBW-611 | $202.15 |
| 3 | STATOR COMP. | 31120-MBW-611 | $183.58 |
| 4 | BOLT, FLANGE (10MM) | 90023-MBW-000 | $5.26 |
| 5 | BOLT, FLANGE (6X16) | 90029-888-000 | $1.32 |
| 6 | WASHER (10MM) | 90404-MBW-000 | $2.82 |
| 7 | BOLT, SOCKET (6X32) | 96600-06032-00 | $1.00 |
