2000 Honda CBR 600 F4 partsfiche

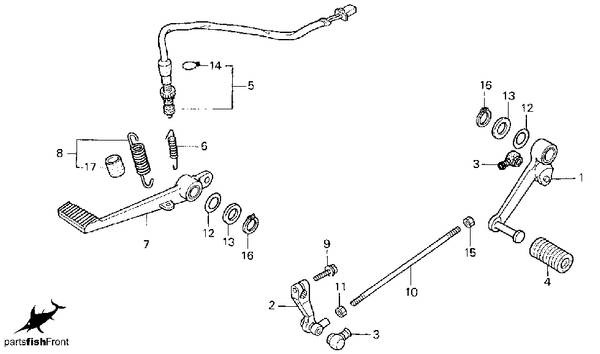

brake pedal
| no. | description | part number | list price
|
|---|
| 1
| PEDAL, GEARSHIFT
| 24705-MBW-000
| $53.26
|
| 2
| ARM COMP., GEARSHIFT
| 24710-MBW-000
| $37.20
|
| 3
| COVER, DUST
| 24724-422-000
| $4.08
|
| 4
| RUBBER
| 24781-KR3-770
| $1.89
|
| 5
| SWITCH, RR. STOP
| 35350-MBW-610
| $6.38
|
| 6
| SPRING, STOP SWITCH
| 35357-KE1-000
| $3.45
|
| 7
| PEDAL, BRAKE
| 46500-MBW-000
| $43.83
|
| 8
| SPRING, BRAKE PEDAL
| 46515-MBW-000
| $3.98
|
| 9
| BOLT, FLANGE (6X20)
| 90010-ML0-720
| $1.62
|
| 10
| BOLT, TIE ROD
| 90065-MAL-600
| $3.97
|
| 11
| NUT
| 90201-700-000
| $0.49
|
| 12
| WASHER
| 90505-MBW-000
| $2.32
|
| 13
| WASHER (15.2X25)
| 90557-230-000
| $1.26
|
| 14
| CLIP, SWITCH COVER
| 90601-KAF-003
| $1.40
|
| 15
| NUT, HEX. (6MM)
| 94001-06020-0S
| $0.49
|
| 16
| CIRCLIP (15MM)
| 94511-15000
| $0.35
|
| 17
| BULK HOSE, VINYL
| 95003-43003-10M
| $9.34
|
