2000 Honda CBR 600 F4 partsfiche

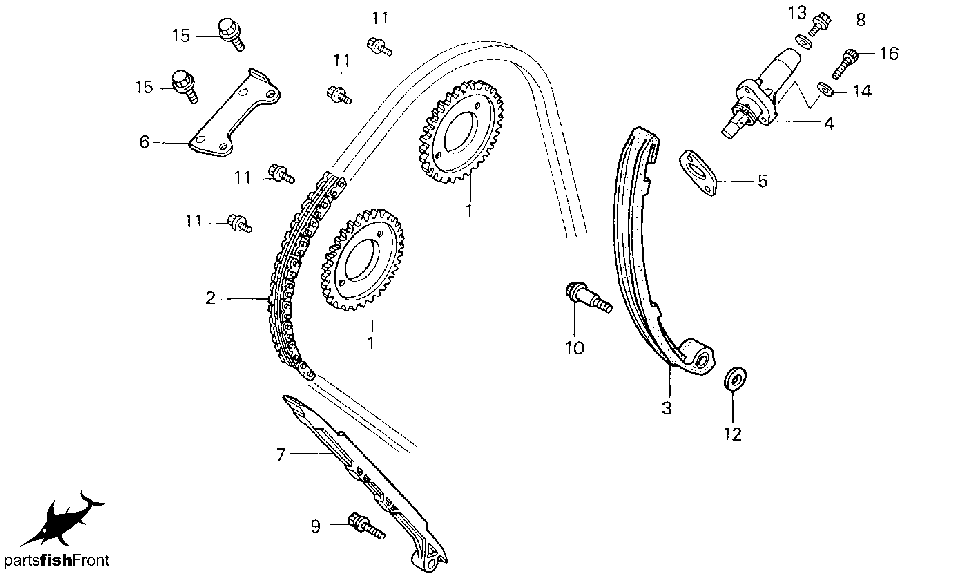

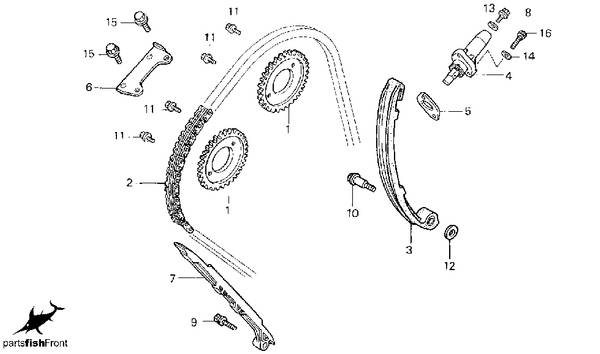

cam chain tensioner
| no. | description | part number | list price
|
|---|
| 1
| SPROCKET, CAM
| 14321-MBW-000
| $34.68
|
| 2
| CHAIN, CAM
| 14401-MAL-602
| $54.52
|
| 3
| TENSIONER, CAM CHAIN
| 14510-MBW-000
| $35.80
|
| 4
| LIFTER, TENSIONER
| 14520-MBW-003
| $48.26
|
| 5
| GASKET
| 14523-MAL-A00
| $1.46
|
| 6
| GUIDE B, CAM CHAIN
| 14546-MBW-000
| $18.95
|
| 7
| GUIDE, CAM CHAIN
| 14620-MBW-000
| $32.95
|
| 8
| BOLT, FLANGE (6X10)
| 90004-GHB-600
| $1.80
|
| 9
| BOLT-WASHER (6X12)
| 90021-MM5-000
| $2.89
|
| 10
| PIVOT
| 90022-MBW-000
| $2.91
|
| 11
| BOLT (7X10.5)
| 90082-HA0-000
| $0.98
|
| 12
| WASHER (6MM)
| 90401-MBW-000
| $2.03
|
| 13
| WASHER (6MM)
| 90442-397-000
| $1.18
|
| 14
| WASHER (6.5MM)
| 90463-ML7-000
| $1.62
|
| 15
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
| 16
| BOLT, SOCKET (6X25)
| 96600-06025-00
| $0.92
|
