2000 Honda CBR 600 F4 partsfiche

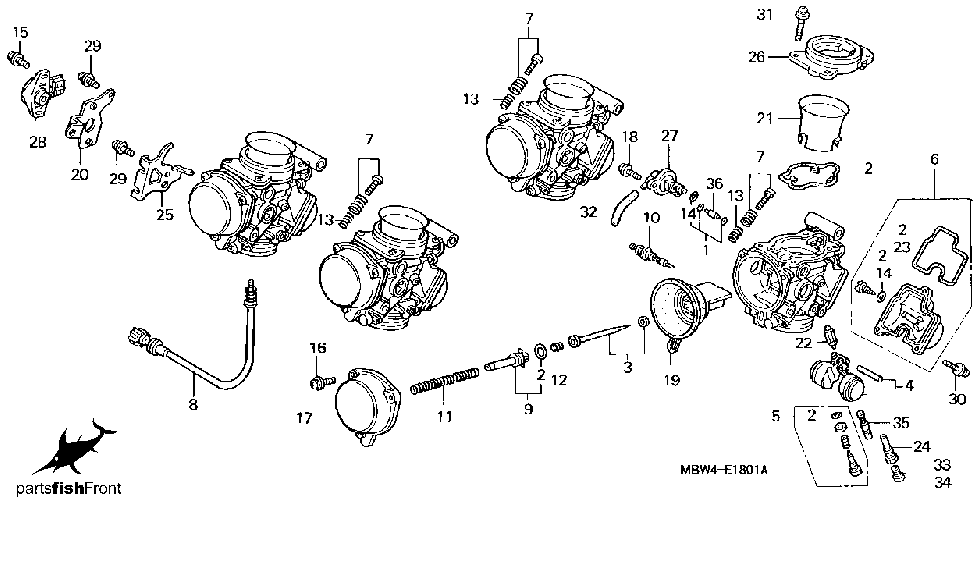

carburetor component parts
| no. | description | part number | list price
|
|---|
| 1
| GASKET SET
| 16010-HM7-670
| $7.34
|
| 2
| GASKET SET A
| 16010-MZ2-E00
| $20.25
|
| 3
| NEEDLE SET, JET
| 16025-MBW-601
| $19.08
|
| 3
| NEEDLE SET, JET
| 16025-MBW-731
| $21.03
|
| 4
| FLOAT SET
| 16013-MBZ-610
| $21.75
|
| 5
| SCREW SET
| 16016-MAS-670
| $12.49
|
| 5
| SCREW SET
| 16016-MBW-731
| $12.22
|
| 6
| CHAMBER SET, FLOAT
| 16023-MZ5-920
| $77.68
|
| 7
| SCREW SET
| 16028-MZ2-E00
| $24.11
|
| 8
| SCREW SET, STOP
| 16029-MBW-601
| $17.12
|
| 9
| PLATE SET, VALVE
| 16037-MZ2-E00
| $11.80
|
| 10
| VALVE SET, STARTER
| 16046-MAL-600
| $35.00
|
| 11
| SPRING
| 16050-MBW-601
| $5.37
|
| 12
| SPRING
| 16051-MV4-000
| $9.85
|
| 13
| SPRING
| 16052-ME9-672
| $2.94
|
| 14
| O-RING (1.3X4.3)
| 16075-GHB-640
| $1.49
|
| 15
| SCREW-WASHER, TORX
| 16080-MBB-640
| $0.89
|
| 16
| SCREW, PAN
| 16080-MV4-000
| $1.22
|
| 17
| TOP
| 16107-MW0-670
| $31.40
|
| 18
| SCREW
| 16108-MW0-750
| $4.02
|
| 19
| PISTON COMP., VACUUM
| 16111-MBW-601
| $68.31
|
| 20
| PLATE, STAY
| 16129-MBW-601
| $6.38
|
| 21
| FUNNEL, AIR
| 16141-MBW-601
| $13.74
|
| 22
| VALVE COMP., FLOAT
| 16155-413-751
| $17.72
|
| 23
| GASKET
| 16163-MZ5-920
| $15.45
|
| 24
| HOLDER, NEEDLE JET
| 16165-MBW-601
| $9.18
|
| 25
| STAY, WIRE
| 16169-MBW-601
| $9.95
|
| 26
| PLATE
| 16188-MW0-671
| $35.75
|
| 27
| VALVE ASSY., AIR CUT
| 16510-MBW-601
| $60.05
|
| 28
| SENSOR, THROTTLE
| 37890-MBW-601
| $33.03
|
| 29
| SCREW-WASHER (5X10)
| 93892-05010-10
| $0.26
|
| 30
| SCREW-WASHER (5X16)
| 93892-05016-10
| $0.26
|
| 31
| SCREW-WASHER (4X14)
| 93893-04014-07
| $0.48
|
| 31
| SCREW-WASHER (4X14)
| 93893-04014-17
| $0.48
|
| 32
| BULK HOSE (3.5X1000)
| 95005-35001-20M
| $4.49
|
| 33
| JET (#128)
| 99101-GHB-1280
| $5.52
|
| 34
| JET (#135)
| 99101-GHB-1350
| $6.91
|
| 35
| JET, SLOW (#40)
| 99103-MT2-0400
| $15.38
|
| 36
| JET, SLOW AIR (#115)
| 99108-MY5-1150
| $4.95
|
