2000 Honda CBR 600 F4 partsfiche

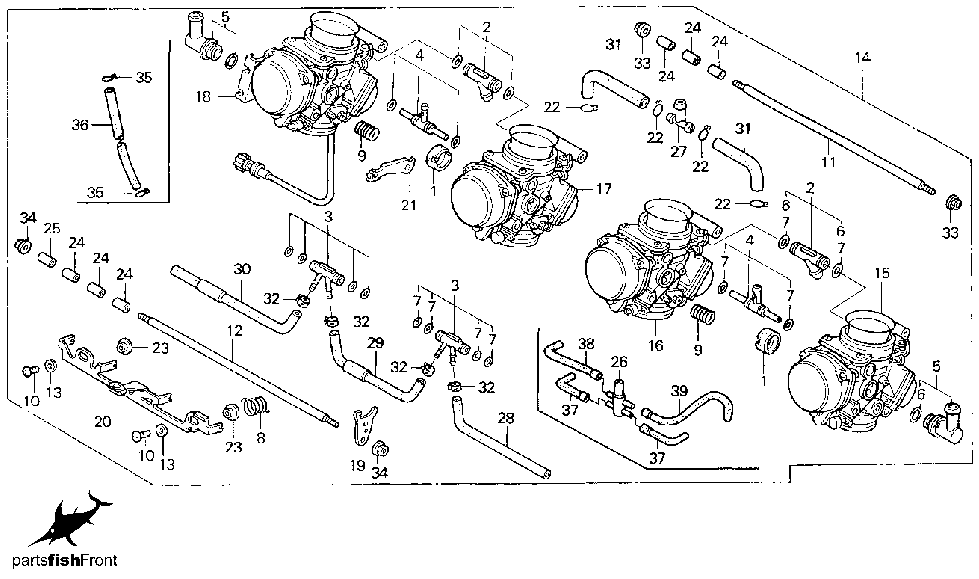

carburetory assembly
| no. | description | part number | list price
|
|---|
| 1
| JOINT
| 16024-MBW-601
| $15.40
|
| 2
| JOINT SET
| 16024-MZ2-E00
| $20.80
|
| 3
| JOINT SET
| 16026-MAL-600
| $22.28
|
| 4
| JOINT SET
| 16026-MW0-600
| $19.03
|
| 5
| JOINT SET
| 16027-MBW-601
| $18.28
|
| 6
| GASKET SET C
| 16039-MZ1-790
| $29.34
|
| 7
| GASKET SET
| 16040-MAL-600
| $10.83
|
| 8
| SPRING, TORSION COIL
| 16051-MZ2-610
| $7.08
|
| 9
| SPRING
| 16053-MA6-003
| $4.25
|
| 10
| SCREW-WASHER
| 16081-KAZ-000
| $1.60
|
| 11
| BOLT
| 16083-MAT-000
| $14.66
|
| 12
| BOLT
| 16084-MBW-601
| $11.89
|
| 13
| WASHER, PLAIN
| 16085-MV4-000
| $1.42
|
| 14
| CARBURETOR (VP64C A)
| 16100-MBW-671
| $1,050.71
|
| 14
| CARBURETOR (VP64B A)
| 16100-MBW-771
| $1,050.71
|
| 15
| CARBURETOR ASSY. 1
| 16101-MBW-671
| $303.29
|
| 15
| CARBURETOR ASSY. 1
| 16101-MBW-771
| $303.29
|
| 16
| CARBURETOR ASSY. 2
| 16102-MBW-671
| $303.29
|
| 16
| CARBURETOR ASSY. 2
| 16102-MBW-771
| $303.29
|
| 17
| CARBURETOR ASSY. 3
| 16103-MBW-671
| $303.29
|
| 17
| CARBURETOR ASSY. 3
| 16103-MBW-771
| $303.29
|
| 18
| CARBURETOR ASSY. 4
| 16104-MBW-671
| $303.29
|
| 18
| CARBURETOR ASSY. 4
| 16104-MBW-771
| $303.29
|
| 19
| PLATE, STAY
| 16119-MBW-601
| $3.32
|
| 20
| LEVER, STARTER
| 16120-MBW-601
| $30.69
|
| 21
| PLATE, STAY
| 16121-MBW-601
| $4.31
|
| 22
| CLIP, TUBE (B6.5)
| 16163-GHB-610
| $1.17
|
| 23
| COLLAR
| 16175-MZ1-000
| $6.74
|
| 24
| PIN, KNOCK
| 16178-MV4-000
| $2.38
|
| 25
| PIN, DOWEL
| 16178-MZ0-000
| $2.78
|
| 26
| JOINT
| 16180-ME5-761
| $16.26
|
| 27
| T-JOINT
| 16181-MBW-601
| $13.20
|
| 28
| HOSE, HEATER
| 16191-MBW-601
| $4.75
|
| 29
| HOSE COMP., HEATER
| 16192-MBW-601
| $4.37
|
| 30
| HOSE COMP., HEATER
| 16193-MBW-602
| $5.57
|
| 31
| TUBE
| 16195-MBW-601
| $4.51
|
| 32
| CLAMP (D10.5)
| 91406-SL4-931
| $2.02
|
| 33
| NUT, FLANGE (5MM)
| 94050-05000
| $0.45
|
| 34
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 35
| CLIP, TUBE (B18)
| 95002-02089
| $0.68
|
| 36
| BULK HOSE (3.5X8000)
| 95005-35008-10M
| $38.18
|
| 37
| BULK HOSE (4.5X1000)
| 95005-45001-20M
| $16.05
|
| 38
| BULK HOSE (4.5X1000)
| 95005-45001-20M
| $16.05
|
| 39
| BULK HOSE (4.5X1000)
| 95005-45001-20M
| $16.05
|
