2000 Honda CBR 600 F4 partsfiche

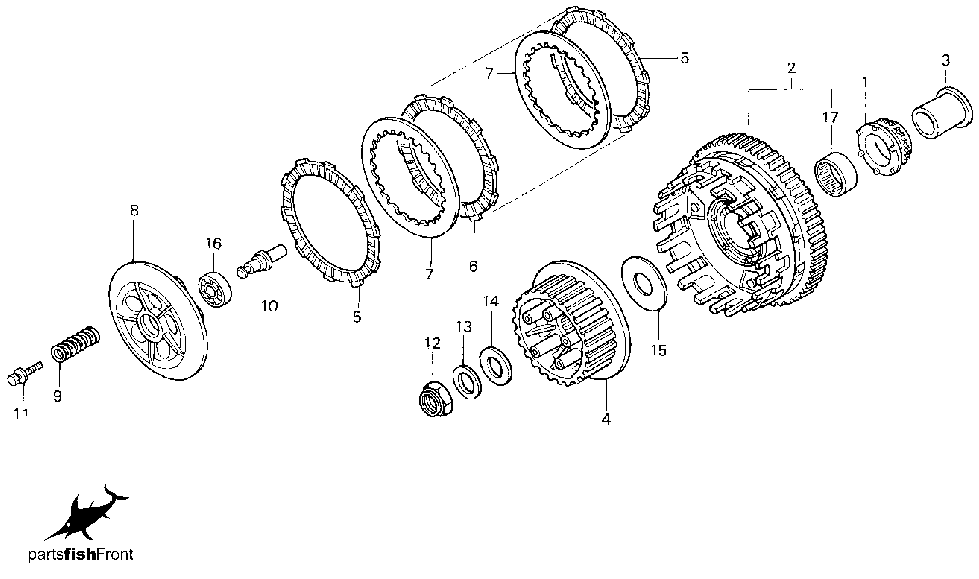

clutch
| no. | description | part number | list price
|
|---|
| 1
| SPROCKET (25T)
| 15131-MAS-003
| $30.17
|
| 2
| CLUTCH OUTER COMP.
| 22100-MBW-000
| $187.77
|
| 3
| GUIDE, CLUTCH
| 22116-MBW-000
| $10.82
|
| 4
| CENTER, CLUTCH
| 22120-MBW-000
| $51.83
|
| 5
| DISK, CL FRICTION
| 22201-MAL-600
| $9.12
|
| 6
| DISK, CL FRICTION
| 22201-MAS-E00
| $7.09
|
| 7
| PLATE, CLUTCH
| 22321-ML7-000
| $7.68
|
| 7
| PLATE, CLUTCH
| 22321-MR7-000
| $7.68
|
| 8
| PLATE, CLU PRESS
| 22350-MBW-000
| $30.69
|
| 9
| SPRING, CLUTCH
| 22401-MBW-000
| $2.35
|
| 10
| PIN, CLUTCH LIFTER
| 22847-MBW-000
| $10.55
|
| 11
| BOLT-WASHER (6X28)
| 90024-MAS-000
| $2.08
|
| 12
| NUT, LOCK (22MM)
| 90231-MM5-000
| $5.66
|
| 13
| WASHER (22MM)
| 90432-MM5-000
| $4.71
|
| 14
| WASHER (22X39X2)
| 90451-KG4-000
| $2.82
|
| 15
| WASHER (60X25X2)
| 90459-MM4-000
| $5.94
|
| 16
| BEARING (16003)
| 91009-MAS-003
| $12.38
|
| 17
| BEARING (35X42X23)
| 91026-MV9-671
| $46.18
|
