2000 Honda CBR 600 F4 partsfiche

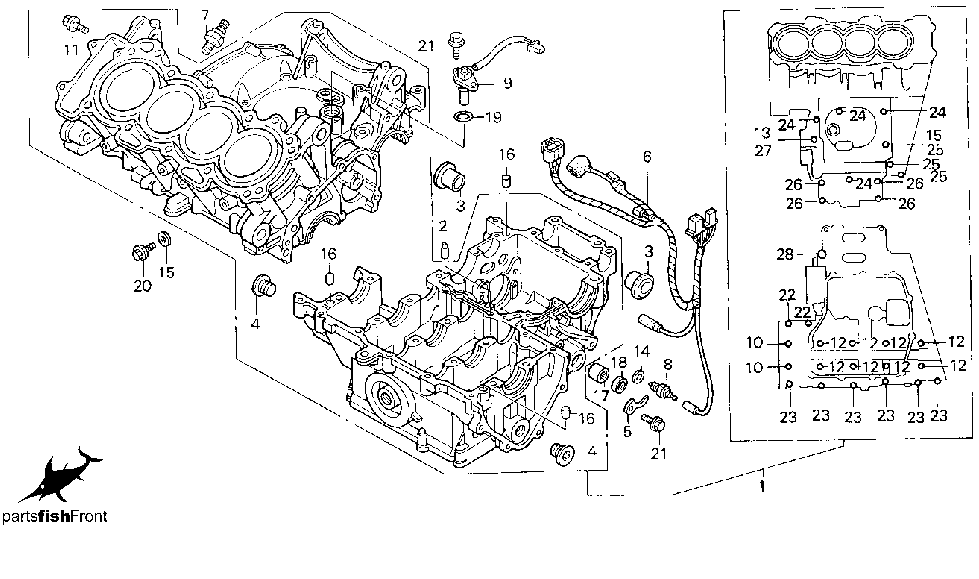

crankcase
| no. | description | part number | list price
|
|---|
| 1
| CRANKCASE SET
| 11000-MBW-000
| $1,195.08
|
| 2
| ORIFICE (1.2MM)
| 11104-MW0-000
| $9.77
|
| 3
| COLLAR, ENG HGR
| 11105-MBW-300
| $8.66
|
| 4
| BOLT, SEALING (20MM)
| 12208-PR3-000
| $3.38
|
| 5
| PLATE, SPINDLE
| 24612-MAL-600
| $5.02
|
| 6
| SUB-WIRE A
| 32101-MBW-610
| $28.02
|
| 7
| SWITCH, OIL PRESSURE
| 35500-MJ4-024
| $23.14
|
| 8
| SWITCH, NEUTRAL
| 35600-KE8-003
| $10.28
|
| 9
| SENSOR, SPEEDOMETER
| 37700-MBW-611
| $57.46
|
| 10
| BOLT, UBS (8X100)
| 90004-MAL-A00
| $3.65
|
| 11
| BOLT, FLANGE (6X48)
| 90019-MAT-000
| $3.43
|
| 12
| BOLT, UBS (8X75)
| 90041-MAL-A00
| $3.65
|
| 13
| WASHER (8MM)
| 90442-028-000
| $0.89
|
| 14
| WASHER, NEUTRAL
| 90443-MJ6-000
| $0.97
|
| 15
| WASHER (6.5MM)
| 90463-ML7-000
| $1.62
|
| 16
| PIN, DOWEL (10X16)
| 90701-MV9-670
| $2.42
|
| 17
| BEARING (14X22X16)
| 91106-KM1-013
| $9.86
|
| 18
| OIL SEAL (14X22X5)
| 91203-KA4-771
| $2.15
|
| 18
| OIL SEAL (14X22X5)
| 91203-KK3-830
| $2.15
|
| 19
| O-RING (18.1X3.6)
| 91302-MAL-601
| $2.29
|
| 20
| BOLT, FLANGE (6X12)
| 95701-06012-00
| $0.54
|
| 21
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
| 22
| BOLT, FLANGE (6X35)
| 95701-06035-00
| $0.60
|
| 23
| BOLT, FLANGE (6X40)
| 95701-06040-00
| $0.66
|
| 24
| BOLT, FLANGE (6X50)
| 95701-06050-00
| $0.80
|
| 25
| BOLT, FLANGE (6X65)
| 95701-06065-00
| $0.89
|
| 26
| BOLT, FLANGE (8X50)
| 95701-08050-00
| $0.89
|
| 27
| BOLT, FLANGE (8X65)
| 95701-08065-00
| $0.97
|
| 28
| BOLT, FLANGE (10X75)
| 95701-10075-00
| $1.48
|
