2000 Honda CBR 600 F4 partsfiche

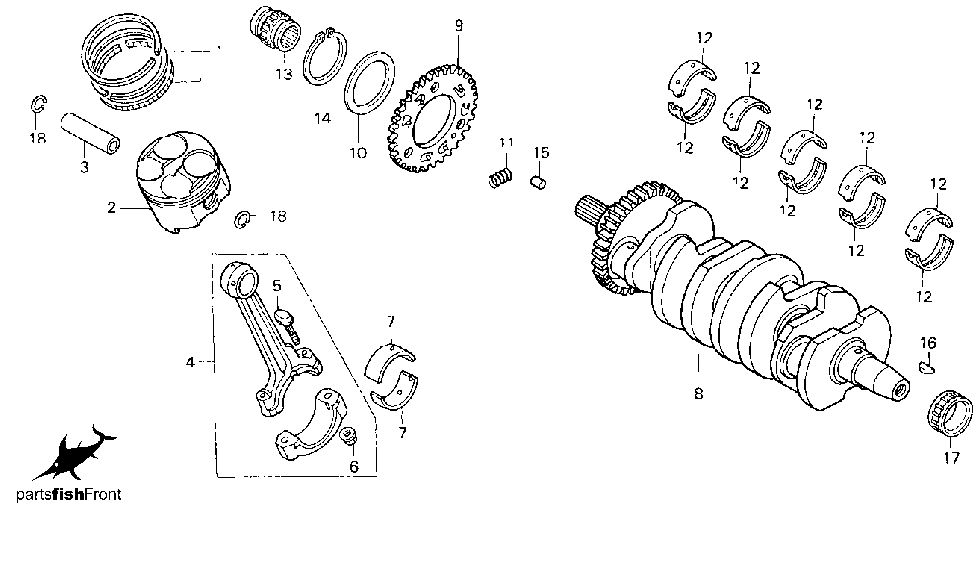

crankshaft piston
| no. | description | part number | list price
|
|---|
| 1
| RING SET (STD)
| 13011-MBW-305
| $23.38
|
| 1
| RING SET (OS 0.25)
| 13021-MBW-305
| $24.14
|
| 2
| PISTON
| 13101-MBW-000
| $42.17
|
| 2
| PISTON (OS 0.25)
| 13102-MBW-305
| $39.60
|
| 3
| PIN, PISTON
| 13111-MBW-000
| $8.40
|
| 4
| ROD, CONNECTING
| 13210-MBW-000
| $94.95
|
| 5
| BOLT, CONNECTING ROD
| 13213-MAL-601
| $3.80
|
| 6
| NUT, CONNECTING ROD
| 13215-MV9-670
| $2.68
|
| 7
| BEARING A, CONN ROD
| 13224-MAL-601
| $6.86
|
| 7
| BEARING B, CONN ROD
| 13225-MAL-601
| $6.86
|
| 7
| BEARING C, CONN ROD
| 13226-MAL-601
| $6.86
|
| 8
| CRANKSHAFT COMP.
| 13300-MBW-000
| $561.26
|
| 9
| GEAR, PRIMARY SUB
| 13303-MBW-000
| $37.32
|
| 10
| SPRING
| 13304-MBW-000
| $4.17
|
| 11
| SPRING
| 13306-MAT-000
| $1.18
|
| 12
| BEARING A
| 13313-MBW-003
| $4.85
|
| 12
| BRG B, CRANKSHAFT
| 13314-MBW-003
| $4.85
|
| 12
| BRG C, CRANKSHAFT
| 13315-MBW-003
| $4.85
|
| 12
| BRG D, CRANKSHAFT
| 13316-MBW-003
| $4.85
|
| 12
| BRG E, CRANKSHAFT
| 13317-MBW-003
| $5.03
|
| 13
| SPROCKET, TIMING
| 14312-MBW-000
| $16.00
|
| 14
| CIRCLIP (OUTER) (40)
| 90601-MBW-000
| $2.51
|
| 15
| PIN, DOWEL (7X10)
| 90701-MBW-000
| $1.48
|
| 16
| KEY (25X14)
| 90741-413-000
| $1.31
|
| 17
| BEARING (30X41X21)
| 91021-MBW-003
| $31.95
|
| 18
| CLIP (17MM)
| 94601-17000
| $0.57
|
