2000 Honda CBR 600 F4 partsfiche

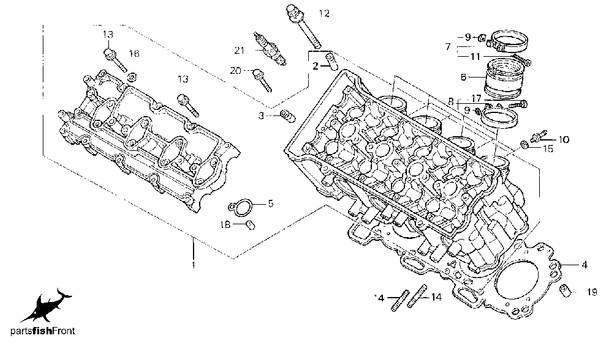

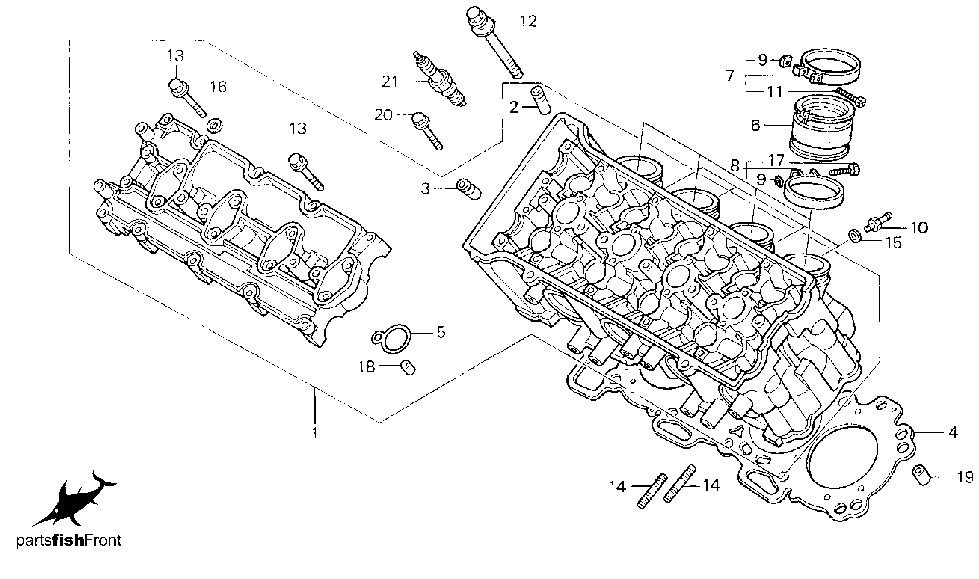

cylinder head
| no. | description | part number | list price
|
|---|
| 1
| CYLINDER HEAD ASSY.
| 12010-MBW-000
| $781.65
|
| 2
| GUIDE, VALVE (OS)
| 12204-MBW-305
| $8.20
|
| 3
| GUIDE (OS)
| 12205-MBW-305
| $8.43
|
| 4
| GASKET, CYL HD
| 12251-MBW-003
| $42.28
|
| 5
| GASKET, PLUG HOLE
| 12395-MBW-003
| $2.63
|
| 6
| INSULATOR
| 16211-MBW-000
| $8.40
|
| 7
| BAND, INSULATOR
| 16218-MBW-000
| $3.66
|
| 8
| BAND B, INSULATOR
| 16218-MV9-670
| $5.45
|
| 9
| NUT, SQUARE (5MM)
| 16222-MV4-300
| $1.09
|
| 10
| JOINT, BOOST
| 17113-KEA-000
| $3.35
|
| 11
| BOLT (5X20)
| 90005-MBW-000
| $0.97
|
| 12
| BOLT-WASHER (9X90)
| 90007-MBW-000
| $4.65
|
| 13
| BOLT, FLG (6X39.5)
| 90019-MA6-000
| $1.62
|
| 14
| BOLT, STUD (8X24)
| 90035-MM5-000
| $2.89
|
| 15
| WASHER (5MM)
| 90452-323-000
| $0.75
|
| 16
| WASHER (6.5MM)
| 90463-ML7-000
| $1.62
|
| 17
| SCREW, PAN (5X28)
| 93500-05028-0G
| $0.26
|
| 18
| PIN, DOWEL (8.7X20)
| 90705-MBW-000
| $0.94
|
| 19
| PIN, DOWEL (10X16)
| 94301-10160
| $1.00
|
| 20
| BOLT, FLANGE (6X45)
| 96001-06045-00
| $0.98
|
