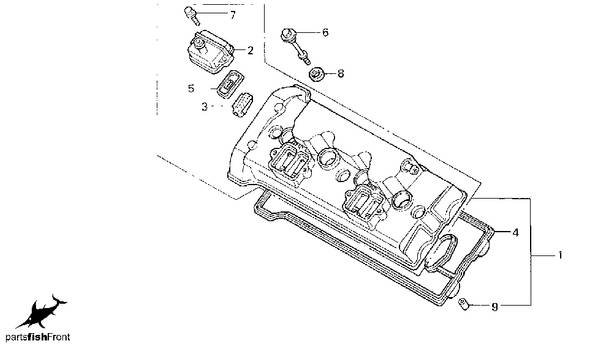

cylinder head cover
| no. | description | part number | list price |
|---|---|---|---|
| 1 | COVER, CYLINDER HEAD | 12310-MBW-000 | $208.00 |
| 2 | COVER, REED VALVE | 12331-MBW-000 | $22.22 |
| 3 | PLATE, PORT | 12341-MAT-750 | $7.17 |
| 4 | GASKET, HEAD COVER | 12391-MBW-000 | $25.63 |
| 5 | VALVE COMP., REED | 18601-MBW-003 | $9.32 |
| 6 | BOLT, HEAD COVER | 90002-MY5-850 | $5.18 |
| 7 | BOLT, FLANGE (6X20) | 90020-ZC3-000 | $1.14 |
| 8 | RUBBER, SETTING | 90543-MV9-670 | $2.80 |
| 9 | PIN, DOWEL (8X14) | 94301-08140 | $0.85 |
