2000 Honda CBR 600 F4 partsfiche

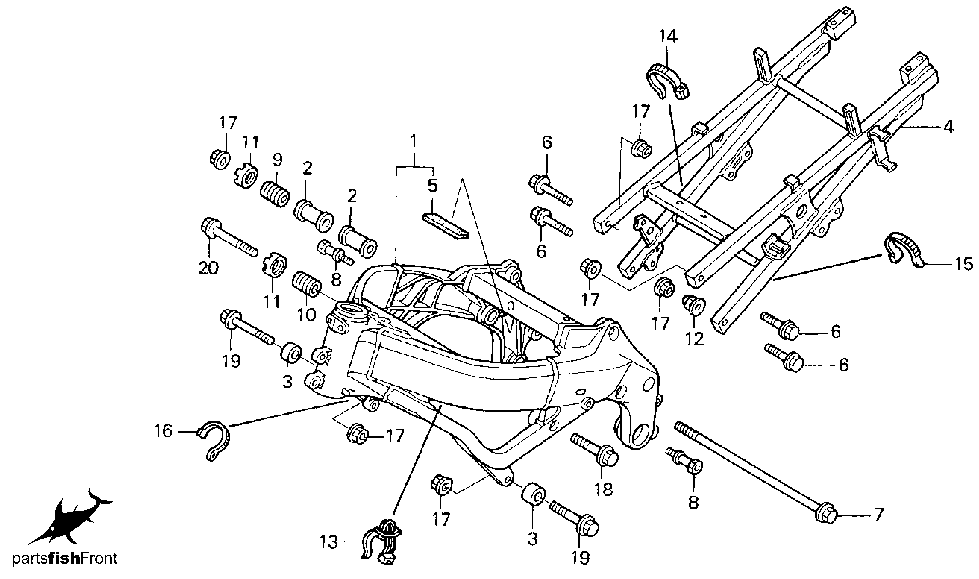

frame
| no. | description | part number | list price
|
|---|
| 1
| FRAME COMP.
| 50100-MBW-000
| $1,018.43
|
| 2
| COLLAR A, ENG HGR
| 50190-MBW-000
| $7.68
|
| 3
| COLLAR B, ENG HGR
| 50191-MBW-000
| $3.02
|
| 4
| RAIL COMP., SEAT
| 50200-MBW-000
| $316.12
|
| 5
| RUBBER, SEAT
| 50226-MY5-610
| $2.26
|
| 6
| BOLT, FLANGE (10X45)
| 90101-MBW-000
| $2.20
|
| 7
| BOLT, FLG (10X325)
| 90105-GBB-000
| $7.03
|
| 8
| BOLT, SPECIAL (8MM)
| 90110-MBW-000
| $5.26
|
| 9
| COLLAR
| 90116-KAF-000
| $12.72
|
| 10
| COLLAR
| 90116-MBW-000
| $10.85
|
| 11
| NUT, LOCK (20MM)
| 90201-MW0-000
| $9.80
|
| 12
| NUT, CAP (10MM)
| 90209-MM8-000
| $2.80
|
| 13
| BAND (150MM)
| 90649-SC2-003
| $2.17
|
| 14
| BAND, WIRE
| 90651-KV6-003
| $2.29
|
| 15
| BAND, WIRE
| 90651-KV6-003
| $2.29
|
| 16
| BAND, SUCTION HOSE
| 90679-SG9-E01
| $2.38
|
| 17
| NUT, FLANGE (10MM)
| 94050-1000
| $0.74
|
| 18
| BOLT, FLANGE (10X50)
| 96400-10050-00
| $1.11
|
| 19
| BOLT, FLANGE (10X60)
| 96400-10060-00
| $1.17
|
| 20
| BOLT, FLANGE (10X65)
| 96400-10065-00
| $1.48
|
