2000 Honda CBR 600 F4 partsfiche

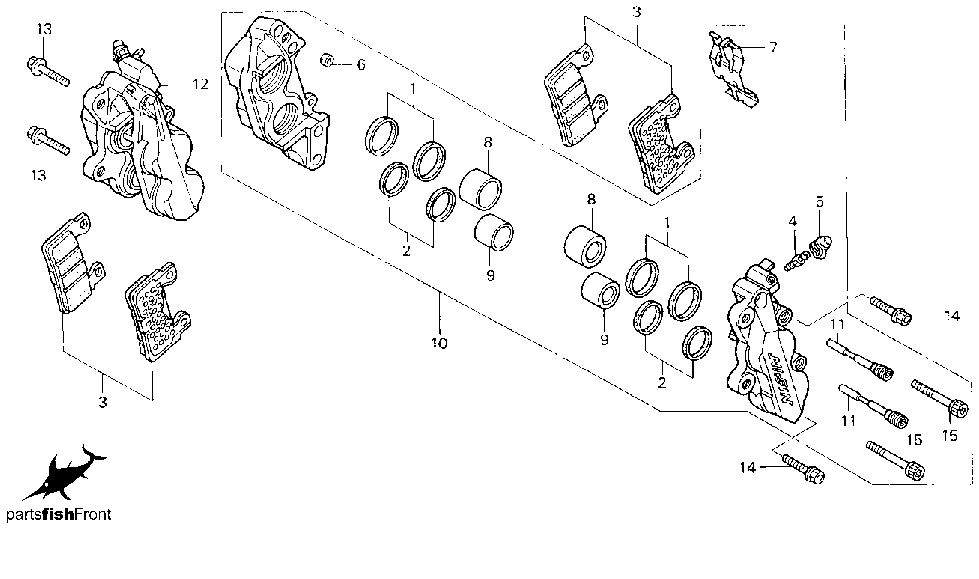

front brake caliper
| no. | description | part number | list price
|
|---|
| 1
| SEAL SET, PISTON
| 06451-MA7-405
| $5.80
|
| 2
| SEAL SET, PISTON
| 06451-961-405
| $4.02
|
| 3
| PAD SET, FR.
| 06455-MBW-006
| $36.23
|
| 4
| SCREW, BLEEDER
| 43352-568-003
| $4.12
|
| 5
| CAP, BLEEDER
| 43353-461-771
| $2.86
|
| 6
| SEAL, JOINT
| 45103-MR7-006
| $2.06
|
| 7
| SPRING COMP., PAD
| 45106-MAS-E01
| $4.97
|
| 8
| PISTON A
| 45107-MAS-E01
| $17.46
|
| 9
| PISTON B
| 45117-MAS-E01
| $17.46
|
| 10
| CALIPER SUB-ASSY.
| 45150-MBW-006
| $207.15
|
| 11
| PIN, HANGER
| 45215-MAS-E01
| $5.34
|
| 12
| CALIPER SUB-ASSY.
| 45250-MBW-006
| $207.15
|
| 13
| BOLT, TORX (8X35)
| 90107-MAS-E01
| $4.02
|
| 14
| BOLT, FLANGE (8X32)
| 90107-MT3-003
| $2.38
|
| 15
| BOLT, TORX (8X40)
| 90108-MAS-E01
| $3.80
|
