2000 Honda CBR 600 F4 partsfiche

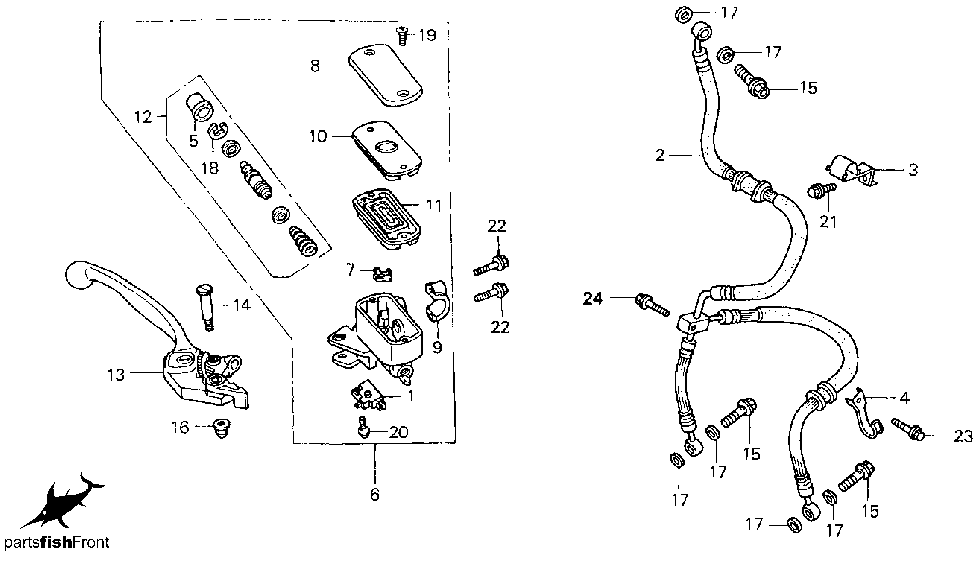

front brake master cylinder
| no. | description | part number | list price
|
|---|
| 1
| SWITCH, FR. STOP
| 35340-MM5-600
| $11.09
|
| 2
| HOSE, FR. BRAKE
| 45125-MBW-003
| $48.17
|
| 3
| CLAMP A, BRAKE HOSE
| 45155-MBW-000
| $6.65
|
| 4
| CLAMP B, BRAKE HOSE
| 45156-MBW-000
| $4.00
|
| 5
| BOOT COMP.
| 45504-410-003
| $6.65
|
| 6
| M/CYL SUB-ASSY, FR.
| 45510-MBW-006
| $169.60
|
| 7
| PROTECTOR
| 45512-MA6-006
| $2.42
|
| 8
| CAP, MASTER CYLINDER
| 45513-MM5-006
| $12.22
|
| 9
| HOLDER
| 45517-166-006
| $7.40
|
| 10
| PLATE, DIAPHRAGM
| 45518-MM5-006
| $5.82
|
| 11
| DIAPHRAGM
| 45520-MM5-006
| $8.25
|
| 12
| MASTER CYLINDER SET
| 45530-MA5-671
| $39.09
|
| 13
| LEVER, R. HANDLE
| 53170-MBW-006
| $22.42
|
| 14
| BOLT, R.
| 90114-MA5-671
| $5.15
|
| 15
| BOLT, OIL (10X22)
| 90145-MS9-612
| $3.78
|
| 16
| NUT, CAP (6MM)
| 90201-415-000
| $1.42
|
| 17
| WASHER, OIL BOLT
| 90545-300-000
| $1.89
|
| 18
| CIRCLIP
| 90651-MA5-671
| $1.51
|
| 19
| SCREW, FLAT (4X12)
| 93600-04012-0G
| $0.34
|
| 19
| SCREW, FLAT (4X12)
| 93600-04012-1G
| $0.34
|
| 20
| SCREW-WASHER (4X12)
| 93893-04012-07
| $0.52
|
| 20
| SCREW-WASHER (4X12)
| 93893-04012-17
| $0.52
|
| 21
| BOLT, FLANGE (6X12)
| 95701-06012-07
| $0.49
|
| 21
| BOLT, FLANGE (6X12)
| 95801-06012-07
| $0.49
|
| 22
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.89
|
| 23
| BOLT, FLANGE (6X28)
| 95801-06028-07
| $0.91
|
| 24
| BOLT, FLANGE (6X40)
| 95801-06040-07
| $0.66
|
