2000 Honda CBR 600 F4 partsfiche

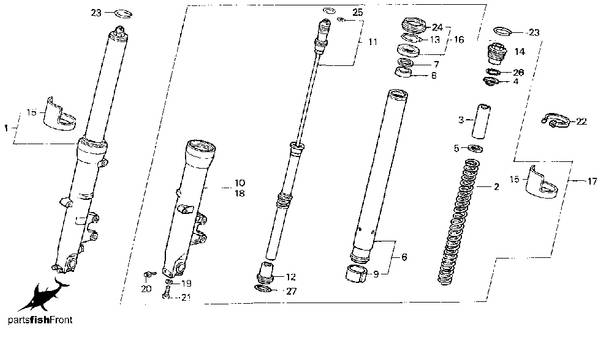

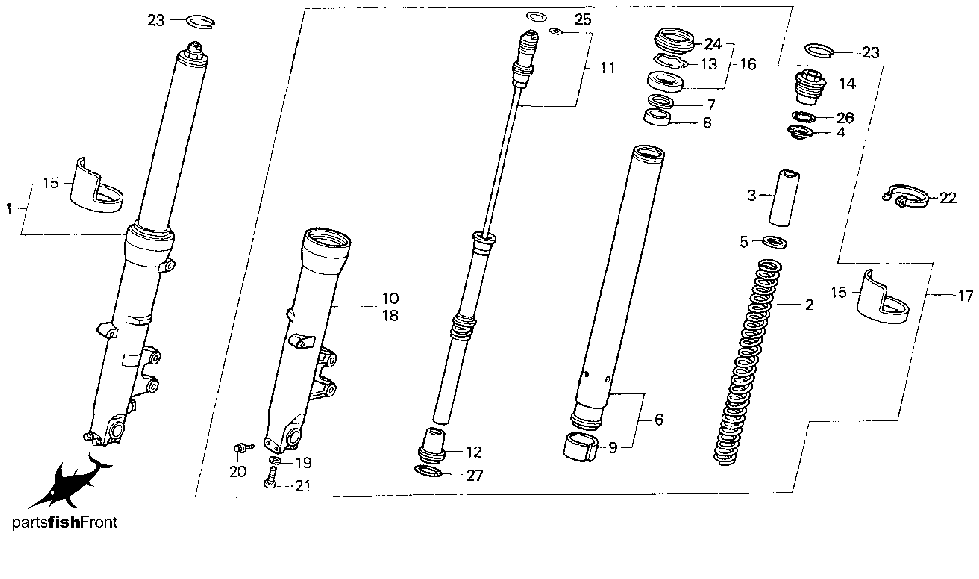

front fork
| no. | description | part number | list price
|
|---|
| 1
| FORK ASSY., R. FR.
| 51400-MBW-671
| $428.85
|
| 2
| SPRING, FR. FORK
| 51401-MBW-003
| $36.57
|
| 3
| COLLAR, SPRING
| 51402-MS2-003
| $9.15
|
| 4
| SEAT, SPRING
| 51404-MR7-003
| $5.80
|
| 5
| SEAT, SPRING
| 51405-KA4-711
| $3.51
|
| 6
| PIPE COMP., FR. FORK
| 51410-MBW-003
| $163.92
|
| 7
| RING, BACK-UP
| 51412-KA4-711
| $5.26
|
| 8
| BUSH, GUIDE
| 51414-MAZ-003
| $6.34
|
| 9
| BUSH, SLIDER
| 51415-MBW-003
| $8.82
|
| 10
| CASE, R. (LOWER)
| 51420-MBW-671
| $179.91
|
| 11
| DAMPER COMP., FR.
| 51430-MBW-003
| $134.48
|
| 12
| PIECE, OIL LOCK
| 51432-MBW-003
| $9.45
|
| 13
| RING
| 51447-KA4-711
| $2.55
|
| 14
| BOLT, FR. FORK
| 51454-MBW-003
| $21.98
|
| 15
| PROTECTOR, FORK PIPE
| 51460-MT3-611
| $5.86
|
| 16
| SEAL SET, FR. FORK
| 51490-MZ1-305
| $19.12
|
| 17
| FORK ASSY., L. FR.
| 51500-MBW-671
| $428.85
|
| 18
| CASE, L. (LOWER)
| 51520-MBW-671
| $179.91
|
| 19
| WASHER (10MM)
| 52442-KA3-711
| $1.25
|
| 20
| BOLT, FLANGE (8X45)
| 90109-MR7-000
| $2.80
|
| 21
| BOLT, SOCKET (10X35)
| 90126-MR7-003
| $8.42
|
| 22
| BAND, WIRE
| 90651-KV6-003
| $2.29
|
| 23
| RING, STOPPER
| 90657-MR7-000
| $1.60
|
| 24
| DUST SEAL
| 91254-ML3-791
| $8.26
|
| 25
| O-RING (13.8X2.4)
| 91311-MR7-003
| $0.98
|
| 25
| O-RING (13.8X2.4)
| 91311-PH7-003
| $0.98
|
| 26
| O-RING (35.2X2.4)
| 91356-KA4-711
| $2.09
|
| 27
| O-RING (39.5X2.0)
| 91358-MA6-003
| $2.18
|
