2000 Honda CBR 600 F4 partsfiche

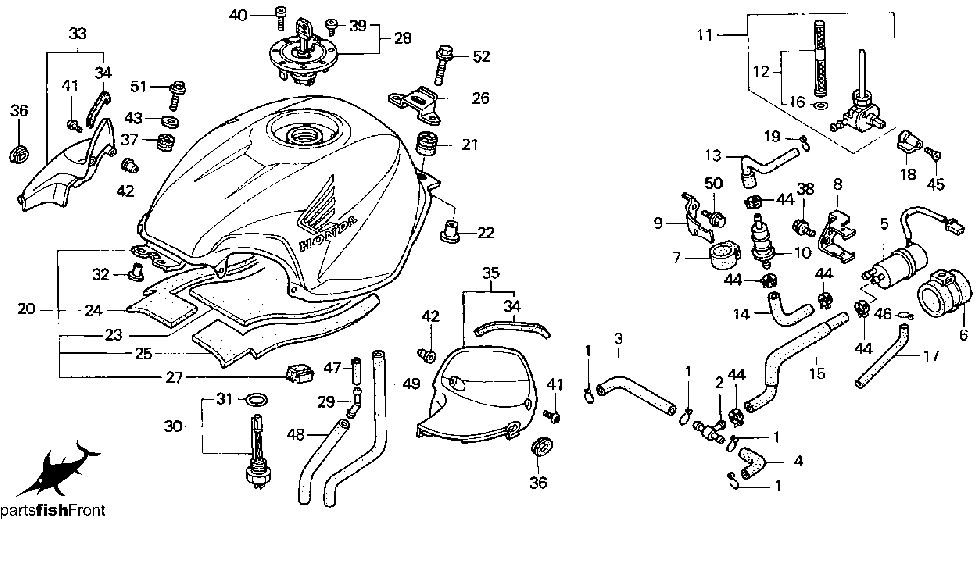

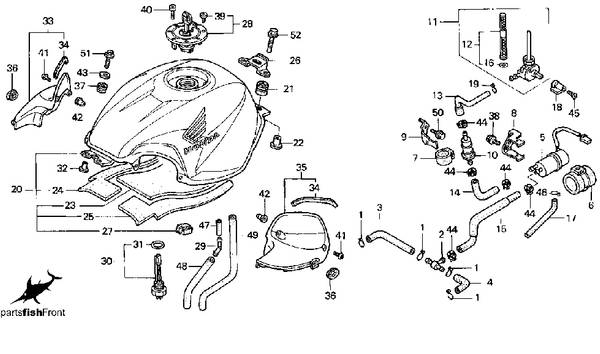

fuel tank
| no. | description | part number | list price
|
|---|
| 1
| CLIP, BREATHER TUBE
| 15772-292-010
| $2.03
|
| 2
| T-JOINT
| 16180-MM5-601
| $21.34
|
| 3
| TUBE, R. FUEL
| 16198-MBW-000
| $4.51
|
| 4
| TUBE, L. FUEL
| 16199-MBW-000
| $2.75
|
| 5
| PUMP ASSY., FUEL
| 16710-MBW-003
| $88.03
|
| 6
| RUBBER
| 16711-MBW-000
| $10.05
|
| 7
| HOLDER, STRAINER
| 16711-MF2-000
| $8.71
|
| 8
| BAND, FUEL PUMP
| 16712-MBW-000
| $5.82
|
| 9
| STAY, FUEL STRAINER
| 16713-MBW-000
| $3.31
|
| 10
| FILTER COMP., FUEL
| 16900-MG8-003
| $12.60
|
| 11
| PETCOCK ASSY.
| 16950-MBW-003
| $40.58
|
| 12
| SCREEN SET
| 16952-MBW-003
| $12.65
|
| 13
| TUBE A, FUEL
| 16955-MBW-000
| $2.75
|
| 14
| TUBE B, FUEL
| 16956-MBW-000
| $1.74
|
| 15
| TUBE C, FUEL
| 16957-MBW-000
| $4.75
|
| 16
| O-RING
| 16958-KM9-005
| $2.02
|
| 17
| TUBE
| 16958-MBW-000
| $3.68
|
| 18
| LEVER, PETCOCK
| 16963-MY5-610
| $7.08
|
| 19
| CLIP, BREATHER TUBE
| 17371-174-670
| $1.12
|
| 20
| TANK, FUEL (TYPE5)
| 17506-MBW-670ZD
| $511.92
|
| 20
| TANK, FUEL (TYPE1)
| 17506-MBW-A00ZA
| $512.42
|
| 20
| TANK, FUEL (TYPE2)
| 17506-MBW-A00ZB
| $512.42
|
| 21
| RUBBER
| 17508-MBW-000
| $3.31
|
| 22
| COLLAR, TANK SET
| 17509-MBW-000
| $4.31
|
| 23
| MAT, FUEL TANK
| 17513-MBW-300
| $12.65
|
| 24
| MAT, R.
| 17514-MBW-300
| $7.15
|
| 25
| MAT, L.
| 17515-MBW-300
| $7.15
|
| 26
| STAY, FR. SEAT
| 17530-MBW-000
| $7.51
|
| 27
| RUBBER, FUEL TANK
| 17611-ML7-000
| $4.63
|
| 28
| CAP, FUEL FILLER
| 17620-MAS-E01
| $108.66
|
| 29
| JOINT, TUBE
| 19103-ML7-000
| $3.49
|
| 30
| SENSOR, FUEL RESERVE
| 37810-MBW-611
| $32.26
|
| 31
| GASKET
| 37811-MB1-008
| $1.60
|
| 32
| COLLAR, SETTING
| 61104-422-000
| $3.89
|
| 33
| COVER, R. *NH1*
| 64580-MBW-000ZA
| $17.34
|
| 34
| CUSHION
| 64581-MBW-300
| $1.94
|
| 35
| COVER, L. *NH1*
| 64590-MBW-000ZA
| $16.72
|
| 36
| GROMMET, SIDE COVER
| 83551-MA6-000
| $1.86
|
| 37
| RUBBER
| 84703-425-000
| $2.66
|
| 38
| BOLT, FLANGE (6X12)
| 90004-GHB-610
| $1.68
|
| 39
| BOLT, SOCKET (4X6)
| 90073-MT4-000
| $1.92
|
| 40
| BOLT, SOCKET (4X21)
| 90074-MT4-000
| $1.74
|
| 41
| SCREW, PAN (5X20)
| 90103-MBG-000
| $1.00
|
| 42
| NUT (5MM)
| 90111-KW3-003
| $2.55
|
| 43
| WASHER, PLAIN (6MM)
| 90525-428-900
| $1.06
|
| 44
| CLAMP, CANISTER HOSE
| 90682-SA0-671
| $3.51
|
| 45
| SCREW, OVAL (5X12)
| 93700-05012-0G
| $0.34
|
| 46
| CLIP, TUBE (C9)
| 95002-50000
| $0.38
|
| 47
| BULK HOSE (4.5X1000)
| 95005-45001-20M
| $16.05
|
| 48
| BULK HOSE (8X1000)
| 95005-80001-50M
| $7.55
|
| 49
| BULK HOSE (8X1000)
| 95005-80001-20M
| $11.89
|
| 50
| BOLT, FLANGE (6X12)
| 96001-06012-00
| $0.60
|
| 51
| BOLT, FLANGE (6X28)
| 96001-06028-00
| $0.86
|
| 52
| BOLT, FLANGE (8X45)
| 96300-08045-00
| $1.11
|
