2000 Honda CBR 600 F4 partsfiche

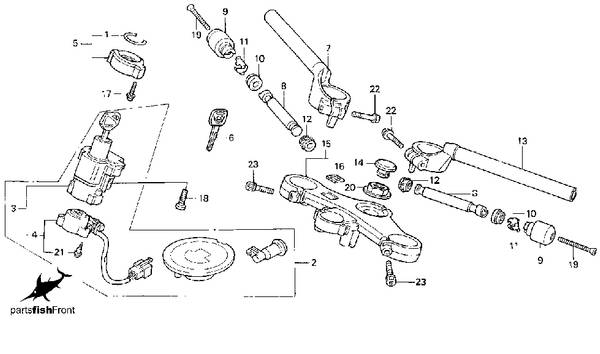

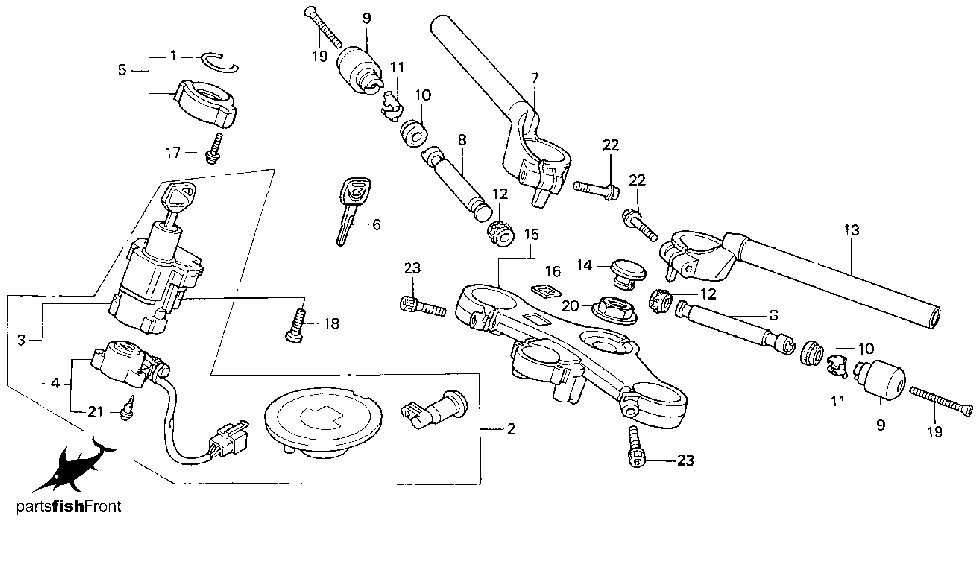

handlebar top bridge
| no. | description | part number | list price
|
|---|
| 1
| SEAL
| 30433-MBW-600
| $2.51
|
| 2
| LOCK SET
| 35010-MBW-671
| $141.95
|
| 3
| SWITCH ASSY.
| 35100-MBW-672
| $96.51
|
| 4
| BASE COMP., CONTACT
| 35101-MBW-671
| $30.29
|
| 5
| COVER
| 35106-MAT-A00
| $5.74
|
| 6
| KEY, BLANK (TYPE1)
| 35121-MAS-G01
| $6.95
|
| 6
| KEY, BLANK (TYPE1)
| 35125-MAS-G01
| $8.78
|
| 7
| HANDLEBAR COMP., R.
| 53100-MBW-000
| $93.71
|
| 8
| WEIGHT B, HANDLEBAR
| 53104-MV4-000
| $13.28
|
| 9
| WEIGHT, HANDLEBAR
| 53105-MN4-000
| $11.51
|
| 10
| RUBBER A
| 53106-MV9-000
| $1.74
|
| 11
| RING
| 53108-MJ0-000
| $3.49
|
| 12
| RUBBER B
| 53109-MM5-000
| $2.06
|
| 13
| HANDLEBAR COMP., L.
| 53150-MBW-000
| $93.71
|
| 14
| CAP, STEERING NUT
| 53232-MJ4-670
| $7.29
|
| 15
| BRIDGE, FORK TOP
| 53300-MBW-000
| $115.92
|
| 16
| EMBLEM, WING MARK
| 86150-MR8-300
| $8.85
|
| 17
| SCREW-WASHER (5X22)
| 90020-MBW-610
| $1.31
|
| 18
| BOLT, SOCKET (8MM)
| 90100-MN8-910
| $2.71
|
| 19
| SCREW, OVAL (6X55)
| 90191-MK4-000
| $2.68
|
| 20
| NUT, STEERING STEM
| 90304-MJ4-670
| $8.37
|
| 21
| SCREW, TAP (3X16)
| 91059-KY2-711
| $1.68
|
| 22
| BOLT, FLANGE (8X35)
| 96300-08035-07
| $0.74
|
| 23
| BOLT, SOCKET (8X40)
| 96700-08040-07
| $1.00
|
