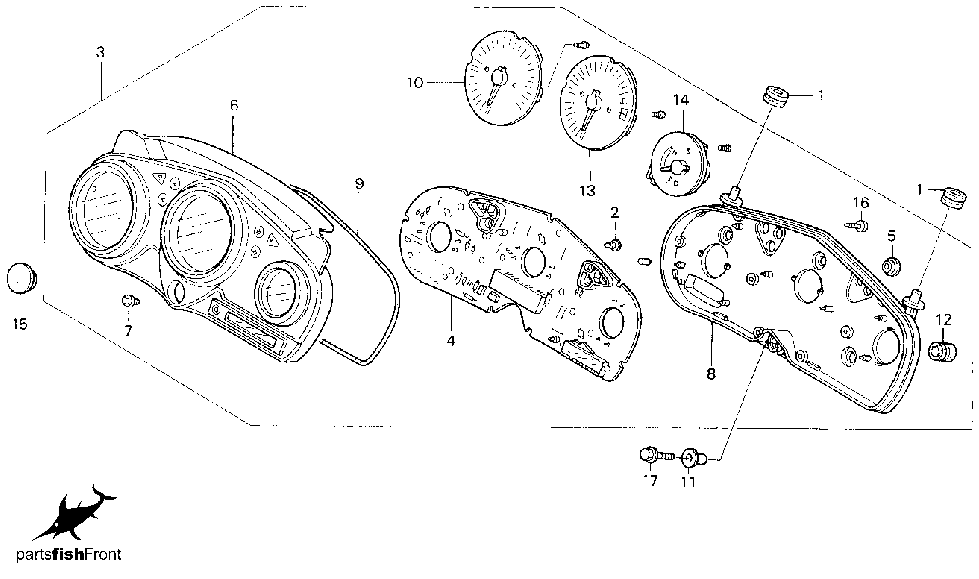

2000 Honda CBR 600 F4 partsfiche
meter
| no. | description | part number | list price
|
|---|
| 1
| GROMMET, A/CLNR HSG
| 17251-KE8-690
| $1.72
|
| 2
| BULB & SOCKET
| 34908-MAS-G01
| $2.60
|
| 3
| METER, COMBINATION
| 37100-MBW-670
| $525.34
|
| 4
| CIRCUIT, PRINTED
| 37105-MBW-671
| $211.05
|
| 5
| CAP
| 37109-MAS-G01
| $1.91
|
| 6
| CASE COMP. (UPPER)
| 37110-MBW-671
| $140.68
|
| 7
| COVER, KNOB
| 37111-MAS-G01
| $0.88
|
| 8
| CASE (LOWER)
| 37120-MBW-611
| $24.31
|
| 9
| GASKET
| 37121-MBW-610
| $9.48
|
| 10
| SPEEDOMETER ASSY.
| 37200-MBW-601
| $92.08
|
| 11
| COLLAR
| 37243-KV3-830
| $3.11
|
| 12
| RUBBER
| 37244-MM4-000
| $2.89
|
| 13
| TACHOMETER ASSY.
| 37250-MBW-671
| $92.08
|
| 14
| METER, TEMPERATURE
| 37400-MBW-671
| $62.58
|
| 15
| GROMMET (20MM)
| 91606-SL0-000
| $2.55
|
| 16
| SCREW, TAP (4X16)
| 93903-24410
| $0.34
|
| 17
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.89
|
