2000 Honda CBR 600 F4 partsfiche

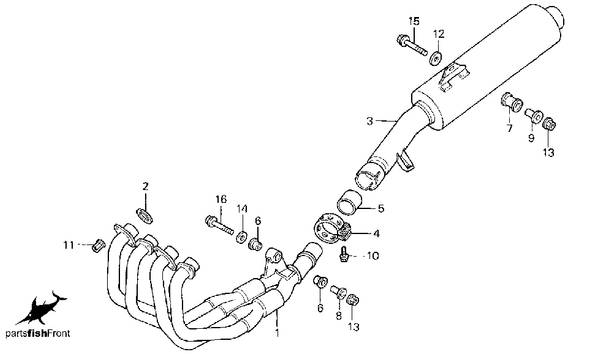

muffler
| no. | description | part number | list price
|
|---|
| 1
| PIPE COMP., EX.
| 18150-MBW-003
| $352.02
|
| 1
| PIPE COMP., EX.
| 18150-MBW-771
| $352.02
|
| 2
| GASKET, EX. PIPE
| 18291-MV9-000
| $2.66
|
| 3
| MUFFLER COMP.
| 18310-MBW-671
| $386.46
|
| 4
| BAND, L. MUFFLER
| 18372-MM5-640
| $19.52
|
| 5
| GASKET, MUFFLER
| 18391-ML0-003
| $15.95
|
| 6
| RUBBER, MUFF MT
| 18421-KAF-000
| $1.82
|
| 7
| RUBBER
| 18421-MB0-000
| $3.58
|
| 8
| COLLAR, MUFF MT
| 18422-MAL-600
| $3.34
|
| 9
| COLLAR
| 18424-MN5-000
| $4.63
|
| 10
| BOLT, FLANGE (8X35)
| 90161-ML7-000
| $2.02
|
| 11
| NUT, FLANGE (7MM)
| 90304-MM5-000
| $2.80
|
| 12
| WASHER A
| 90524-030-000
| $0.92
|
| 13
| NUT, FLANGE (8MM)
| 94050-08000
| $0.54
|
| 14
| WASHER, PLAIN (8MM)
| 94103-08000
| $0.26
|
| 15
| BOLT, FLANGE (8X60)
| 96300-08060-00
| $1.77
|
| 16
| BOLT, FLANGE (8X45)
| 96400-08045-00
| $1.17
|
