2000 Honda CBR 600 F4 partsfiche

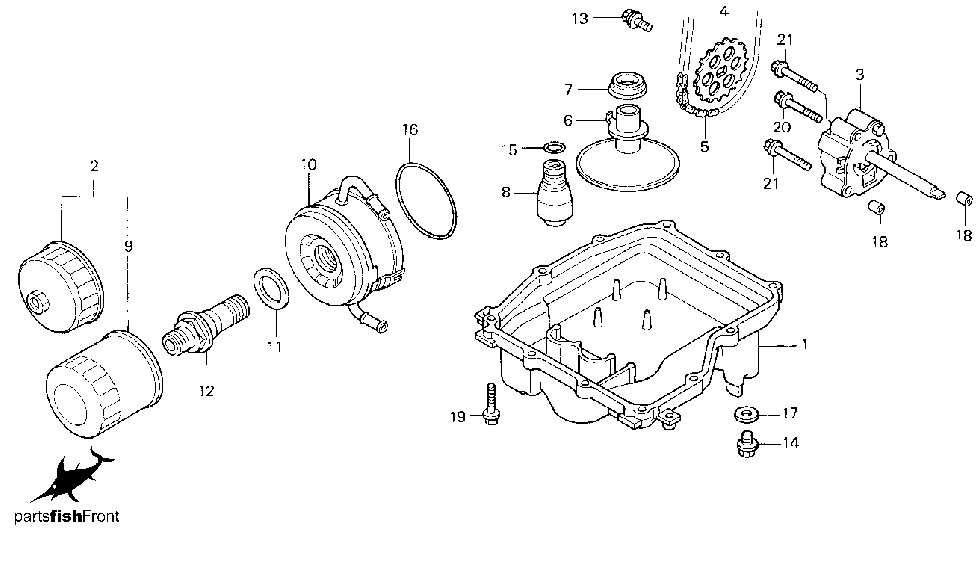

oil pan oil pump
| no. | description | part number | list price
|
|---|
| 1
| PAN, OIL
| 11211-MBW-000
| $117.94
|
| 2
| FILTER SET, OIL
| 15010-MW0-000
| $18.88
|
| 3
| PUMP ASSY., OIL
| 15100-MBW-000
| $87.82
|
| 4
| SPROCKET (26T)
| 15134-MV9-670
| $13.89
|
| 5
| CHAIN (52L)
| 15140-415-003
| $26.72
|
| 6
| STRAINER COMP., OIL
| 15153-MAL-A00
| $17.12
|
| 7
| GASKET, OIL STRAINER
| 15154-MM5-000
| $3.74
|
| 8
| VALVE ASSY., RELIEF
| 15220-MBW-000
| $19.89
|
| 9
| FILTER, OIL
| 15410-MM9-013
| $9.71
|
| 10
| COOLER COMP., OIL
| 15700-MBW-003
| $140.86
|
| 11
| WASHER (24MM)
| 23929-PX4-700
| $4.68
|
| 12
| BOLT, OIL COOLER
| 90019-MBW-003
| $14.35
|
| 13
| BOLT-WASHER (6X12)
| 90021-MM5-000
| $2.89
|
| 14
| BOLT, DRAIN PLUG
| 90131-883-000
| $1.58
|
| 14
| BOLT, DRAIN PLUG
| 90131-896-650
| $2.34
|
| 15
| O-RING (14.7X2.2)
| 91313-MB0-003
| $2.09
|
| 15
| O-RING (14.8X2.2)
| 91313-MG7-004
| $2.09
|
| 16
| O-RING (62.4X3.1)
| 91316-PE7-730
| $2.54
|
| 17
| WASHER (12MM)
| 94109-12000
| $0.40
|
| 18
| PIN, DOWEL (8X14)
| 94301-08140
| $0.85
|
| 19
| BOLT, FLANGE (6X28)
| 95701-06028-00
| $0.66
|
| 20
| BOLT, FLANGE (6X35)
| 95701-06035-00
| $0.60
|
| 21
| BOLT, FLANGE (6X40)
| 95701-06040-00
| $0.66
|
