2000 Honda CBR 600 F4 partsfiche

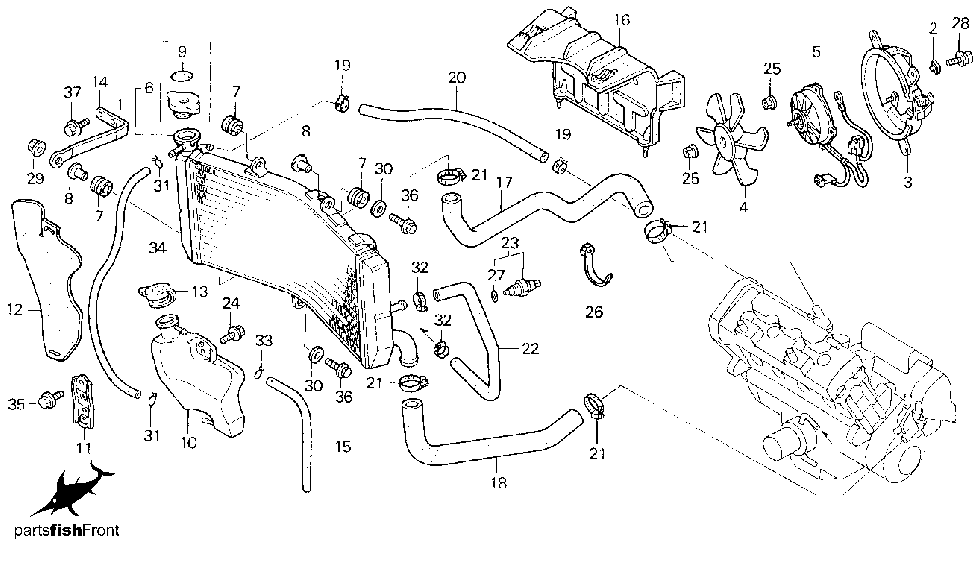

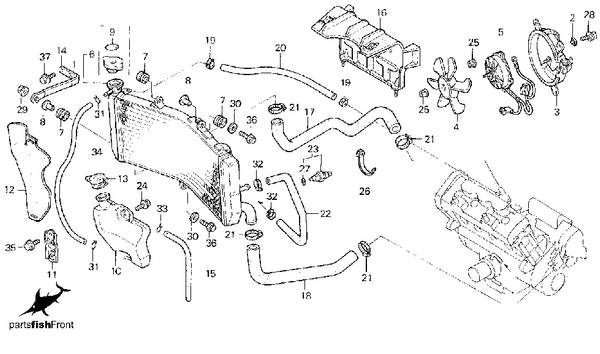

radiator
| no. | description | part number | list price
|
|---|
| 1
| RADIATOR COMP.
| 19010-MBW-671
| $362.60
|
| 2
| NUT, SET
| 19014-KEA-003
| $1.80
|
| 3
| SHROUD COMP.
| 19015-MBW-003
| $36.09
|
| 4
| FAN COMP., COOLING
| 19025-MN4-003
| $30.20
|
| 5
| MOTOR ASSY., FAN
| 19030-MBW-610
| $144.17
|
| 6
| CAP COMP., RADIATOR
| 19045-GBF-770
| $20.92
|
| 7
| RUBBER
| 19051-KA3-830
| $2.38
|
| 8
| RUBBER
| 19052-MN8-000
| $2.89
|
| 9
| SEAL, RADIATOR CAP
| 19055-MV9-921
| $4.80
|
| 10
| TK, RADIATOR RESERVE
| 19101-MBW-000
| $17.45
|
| 11
| STAY, RESERVE TANK
| 19102-MBW-000
| $4.17
|
| 12
| RUBBER
| 19104-MBW-670
| $16.85
|
| 13
| CAP, RESERVE TANK
| 19104-MB0-700
| $6.65
|
| 14
| STAY, RADIATOR
| 19105-MBW-000
| $7.68
|
| 15
| TUBE
| 19106-MBW-000
| $4.38
|
| 16
| RUBBER, HEAT GUARD
| 19125-MBW-000
| $26.11
|
| 17
| HOSE, RADIATOR
| 19501-MBW-000
| $15.69
|
| 18
| HOSE, RADIATOR
| 19505-MBW-000
| $10.54
|
| 19
| CLIP, TUBE (D12.5)
| 95002-41250-08
| $0.91
|
| 20
| TUBE, WATER
| 19511-MBW-000
| $8.05
|
| 21
| CLAMP (30-37MM)
| 19516-GAG-003
| $7.86
|
| 23
| SWITCH, THERMOSTAT
| 37760-MT2-003
| $45.46
|
| 24
| BOLT, FLANGE (6MM)
| 90111-162-000
| $1.86
|
| 25
| NUT, SERRATE (5MM)
| 90315-MK3-003
| $1.22
|
| 26
| BAND, WIRE
| 90651-KV6-003
| $2.29
|
| 27
| O-RING (13.5X1.4)
| 91307-PH7-660
| $1.37
|
| 28
| BOLT-WASHER (6X12)
| 93401-06012-08
| $0.55
|
| 29
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 30
| WASHER, PLAIN (6MM)
| 94103-06000
| $0.32
|
| 31
| CLIP, TUBE (B10)
| 95002-02100
| $0.65
|
| 32
| CLAMP, WATER HOSE
| 19505-KS6-700
| $5.94
|
| 33
| CLIP, TUBE (C9)
| 95002-50000
| $0.38
|
| 34
| BULK HOSE (5.5X3000)
| 95005-55003-20M
| $15.15
|
| 35
| BOLT, FLANGE (6X12)
| 95701-06012-00
| $0.54
|
| 36
| BOLT, FLANGE (6X28)
| 96001-06028-00
| $0.86
|
| 37
| BOLT, FLANGE (6X12)
| 96300-06012-00
| $0.55
|
