2000 Honda CBR 600 F4 partsfiche

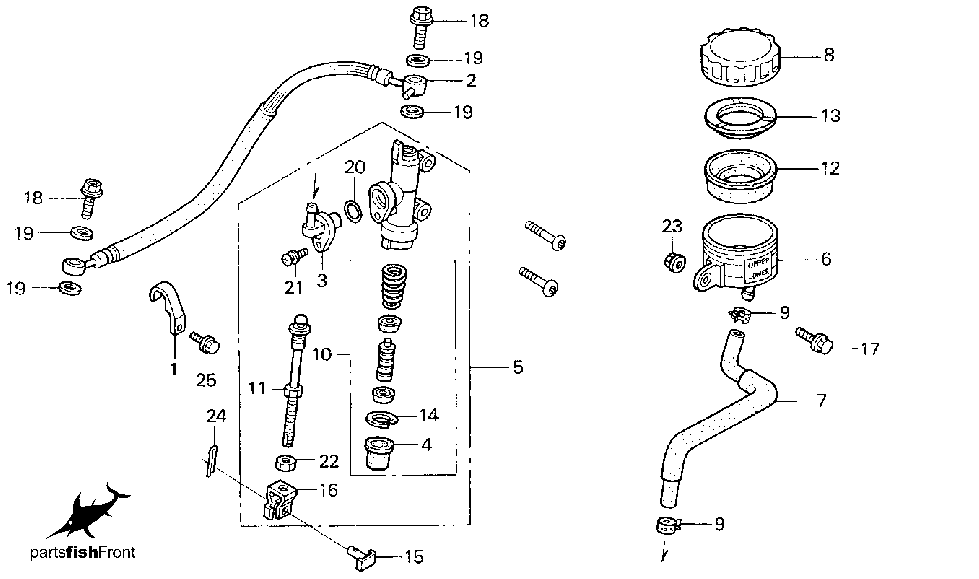

rear brake master cylinder
| no. | description | part number | list price
|
|---|
| 1
| GUIDE, RR.
| 43156-MBW-000
| $4.62
|
| 2
| HOSE, RR. BRAKE
| 43310-MBW-003
| $25.85
|
| 3
| CONNECTOR
| 43503-MR7-006
| $7.68
|
| 4
| BOOT COMP.
| 43504-MB2-006
| $5.48
|
| 5
| M/CYL SUB-ASSY, RR.
| 43510-MBW-006
| $85.86
|
| 6
| CUP COMP., OIL
| 43511-MR7-016
| $16.69
|
| 7
| HOSE, RR.
| 43512-MBW-006
| $8.05
|
| 8
| CAP, OIL CUP
| 43513-MY1-006
| $16.03
|
| 9
| CLAMP
| 43514-KS6-701
| $8.37
|
| 10
| PISTON SET
| 43520-MB2-305
| $47.08
|
| 11
| ROD COMP., PUSH
| 43530-MN5-006
| $14.85
|
| 12
| DIAPHRAGM
| 45520-300-000
| $4.91
|
| 13
| PLATE, DIAPHRAGM
| 45521-MJ6-006
| $2.28
|
| 14
| CIRCLIP
| 46182-500-013
| $2.12
|
| 15
| PIN COMP., BRAKE ROD
| 46503-MAL-000
| $3.08
|
| 16
| JOINT, BRAKE ROD
| 46504-MAL-601
| $6.89
|
| 17
| BOLT, FLANGE (6X16)
| 90001-GHB-630
| $1.95
|
| 18
| BOLT, OIL (10X22)
| 90145-MS9-612
| $3.78
|
| 19
| WASHER, OIL BOLT
| 90545-300-000
| $1.89
|
| 20
| O-RING (14.8X2.4)
| 91212-422-006
| $1.31
|
| 21
| SCREW-WASHER (4X12)
| 93893-04012-07
| $0.52
|
| 21
| SCREW-WASHER (4X12)
| 93893-04012-17
| $0.52
|
| 22
| NUT, HEX. (8MM)
| 94002-08000-0S
| $0.48
|
| 23
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 24
| PIN, SPLIT (2.0X12)
| 94201-20120
| $0.34
|
| 25
| BOLT, FLANGE (6X16)
| 96001-06016-00
| $0.55
|
