2000 Honda CBR 600 F4 partsfiche

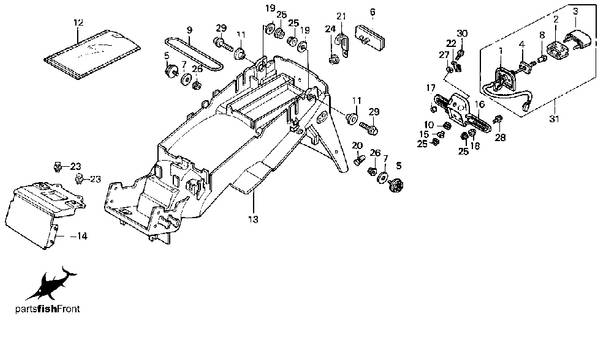

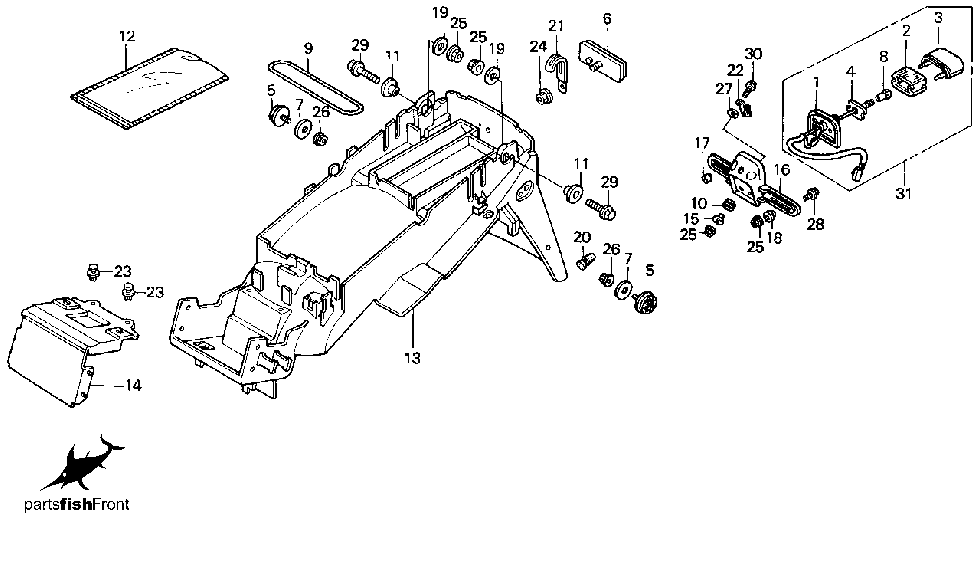

rear fender
| no. | description | part number | list price
|
|---|
| 1
| BASE COMP., LICENSE
| 33721-MAS-A11
| $15.37
|
| 2
| LENS, LICENSE
| 33722-MB1-013
| $11.02
|
| 3
| COVER, LICENSE LIGHT
| 33727-ME4-671
| $14.66
|
| 4
| GASKET, LENS
| 33729-MB1-003
| $3.35
|
| 5
| REFLECTOR, RR.
| 33741-HB9-641
| $14.20
|
| 6
| REFLECTOR, REFLEX
| 33741-MS6-921
| $9.06
|
| 7
| SPACER, RR.
| 33748-MT4-750
| $1.34
|
| 8
| BULB (12V 8W)
| 34616-568-671
| $0.67
|
| 9
| BAND, U-LOCK
| 50290-MZ7-000
| $10.85
|
| 10
| RUBBER, FR.
| 61103-357-000
| $1.72
|
| 11
| COLLAR, SETTING
| 61104-422-000
| $3.89
|
| 12
| BAG, SERVICE BOOK
| 77251-342-000
| $3.29
|
| 13
| FENDER, RR.
| 80100-MBW-670
| $89.18
|
| 14
| COVER, BATTERY TRAY
| 80110-MBW-000
| $13.03
|
| 15
| COLLAR, RR. FENDER
| 80114-KE2-940
| $2.22
|
| 16
| BRKT, NUMBER PLATE
| 84701-ML7-670
| $19.28
|
| 17
| NUT, SPECIAL (4MM)
| 90302-MB2-000
| $2.52
|
| 18
| WASHER (6X20)
| 90502-VA4-640
| $1.88
|
| 19
| WASHER (6X20)
| 90505-HA0-680
| $2.03
|
| 20
| PLUG, CONE TYPE
| 90899-422-610
| $1.29
|
| 21
| CLIP, CABLE
| 91406-166-000
| $2.60
|
| 22
| CLIP (2X60)
| 91410-679-000
| $4.52
|
| 23
| CLIP *NH1*
| 91549-MW0-790ZA
| $2.40
|
| 24
| NUT, FLANGE (5MM)
| 94050-05000
| $0.45
|
| 25
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 26
| NUT, FLANGE (6MM)
| 94050-06070
| $0.55
|
| 27
| WASHER, PLAIN (6MM)
| 94103-06000
| $0.32
|
| 28
| BOLT, FLANGE (6X16)
| 95701-06016-00
| $0.55
|
| 29
| BOLT, FLANGE (6X22)
| 96001-06022-00
| $0.82
|
| 30
| BOLT, FLANGE (6X25)
| 96300-06025-08
| $1.03
|
| 31
| LIGHT ASSY., LICENSE
| 33720-MAS-A11
| $53.49
|
