2000 Honda CBR 600 F4 partsfiche

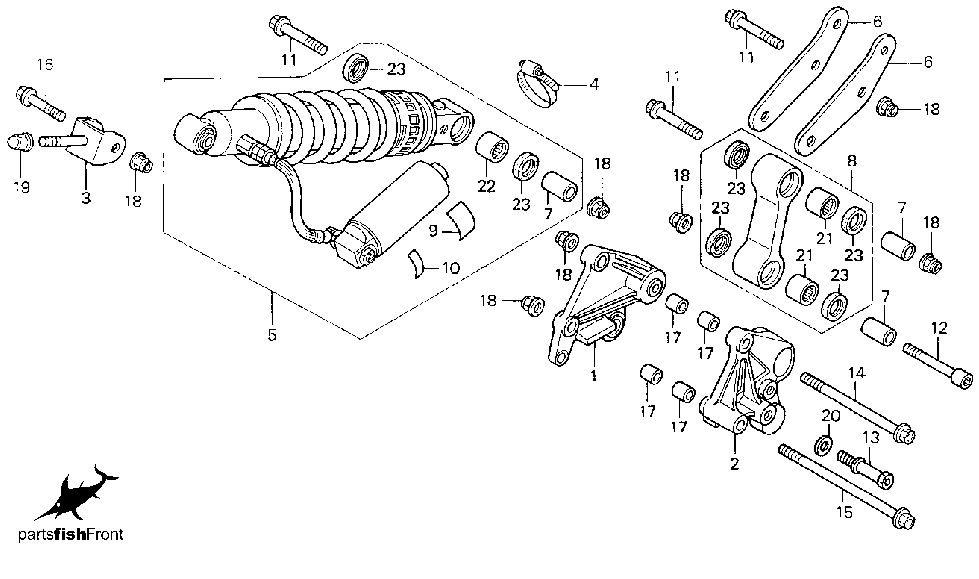

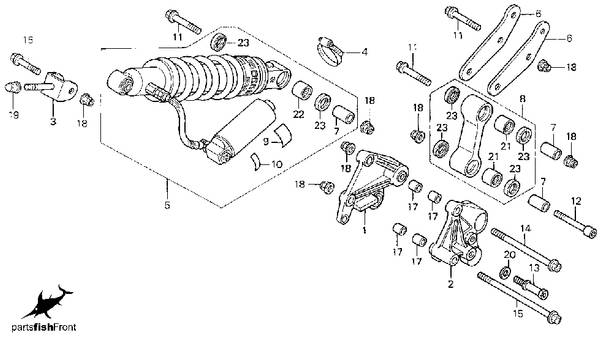

rear shock absorber
| no. | description | part number | list price
|
|---|
| 1
| BRACKET, R. CUSHION
| 50120-MBW-770
| $56.38
|
| 2
| BRACKET., L. CUSHION
| 50121-MBW-770
| $70.63
|
| 3
| BRACKET, RR. RUBBER
| 50233-MZ7-000
| $9.45
|
| 4
| BAND, SUB-TANK
| 50252-MW0-000
| $11.82
|
| 5
| CUSHION ASSY., RR.
| 52400-MBW-003
| $465.14
|
| 6
| PLATE, RR.
| 52461-MBW-000
| $5.00
|
| 7
| COLLAR
| 52463-MAL-G00
| $6.38
|
| 8
| ROD SUB-ASSY.
| 52475-MAS-E00
| $98.45
|
| 9
| LABEL, RR.
| 87516-KV6-610
| $2.54
|
| 10
| LABEL
| 87519-KV3-841
| $1.60
|
| 11
| BOLT, FLANGE (10X62)
| 90101-MBB-000
| $2.26
|
| 12
| BOLT, SOCKET (10X66)
| 90110-KY6-000
| $3.32
|
| 13
| BOLT, SPECIAL (8MM)
| 90110-MBW-770
| $5.26
|
| 14
| BOLT, FLG (10X135)
| 90114-MBW-000
| $4.55
|
| 15
| BOLT, FLG (10X180)
| 90115-MBW-000
| $5.26
|
| 16
| BOLT, FLANGE (10X52)
| 90154-HA8-000
| $4.42
|
| 17
| PIN, DOWEL (10X16)
| 90199-MBW-000
| $2.26
|
| 18
| NUT, U (10MM)
| 90304-GE8-003
| $2.65
|
| 19
| NUT, CAP (10MM)
| 90209-MM8-000
| $2.80
|
| 20
| NUT, HEX. CAP (10MM)
| 90308-MS9-000
| $2.80
|
| 21
| WASHER (8MM)
| 90483-028-000
| $0.97
|
| 22
| BEARING (17X24X20)
| 91072-KT7-003
| $14.14
|
| 23
| DUST SEAL (17X24X5)
| 91262-KV3-831
| $3.48
|
