2000 Honda CBR 600 F4 partsfiche

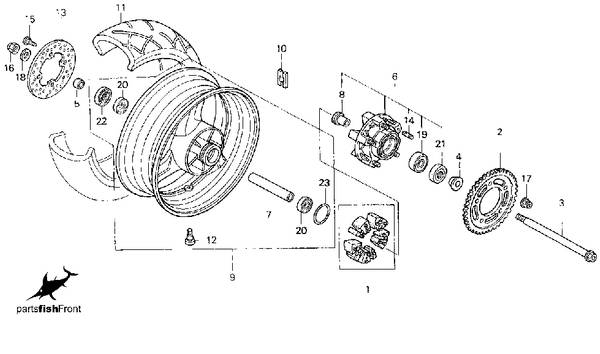

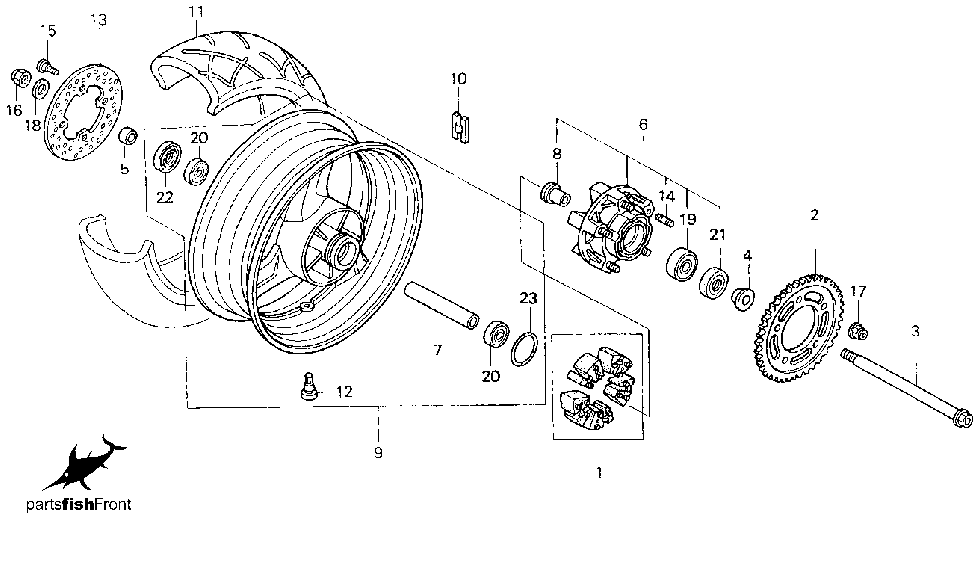

rear wheel
| no. | description | part number | list price
|
|---|
| 1
| DAMPER SET, WHEEL
| 06410-MBW-000
| $32.49
|
| 2
| SPROCKET (45T)
| 41201-MBW-670
| $46.15
|
| 3
| AXLE, RR. WHEEL
| 42301-MAS-000
| $33.40
|
| 4
| COLLAR, L. RR.
| 42311-MAL-601
| $13.35
|
| 5
| COLR, RR. BRAKE SIDE
| 42312-MAE-010
| $11.11
|
| 6
| FLANGE SUB-ASSY.
| 42615-MAS-000
| $129.45
|
| 7
| COLLAR, RR.
| 42620-MW0-010
| $16.45
|
| 8
| COLLAR B, RR.
| 42625-MAS-000
| $10.82
|
| 9
| WHEEL SUB-ASSY., RR.
| 42650-MBB-000
| $557.94
|
| 10
| WEIGHT (10G)
| 42704-MB0-000
| $7.43
|
| 11
| TIRE, RR.
| 42711-MAS-017
| $186.47
|
| 12
| VALVE, RIM
| 42753-ML7-003
| $6.95
|
| 13
| DISK, RR. BRAKE
| 43251-KEA-000
| $143.02
|
| 14
| BOLT, STUD (12X25)
| 90102-MAS-000
| $2.25
|
| 15
| BOLT, DISK (8X24)
| 90105-MV9-003
| $3.48
|
| 16
| NUT, U (18MM)
| 90305-KZ4-891
| $8.20
|
| 17
| NUT, FLANGE (12MM)
| 90306-KF0-003
| $2.80
|
| 18
| WASHER (20X31.5X2)
| 90401-MAS-000
| $1.85
|
| 19
| BEARING (6322)
| 91051-MAS-003
| $21.82
|
| 20
| BEARING (6204UU)
| 91052-MAE-004
| $15.02
|
| 21
| DUST SEAL
| 91252-MAS-003
| $6.60
|
| 22
| DUST SEAL
| 91253-MAE-003
| $8.69
|
| 23
| O-RING (61X2)
| 91302-MA6-003
| $2.97
|
