2000 Honda CBR 600 F4 partsfiche

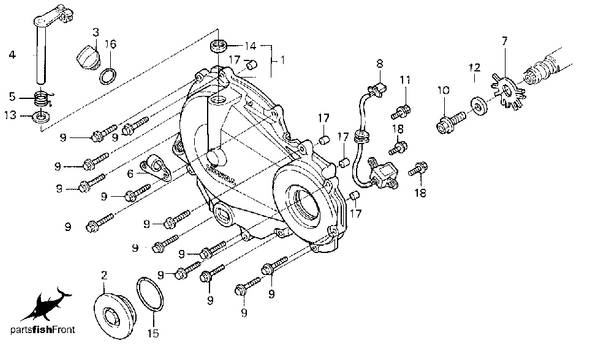

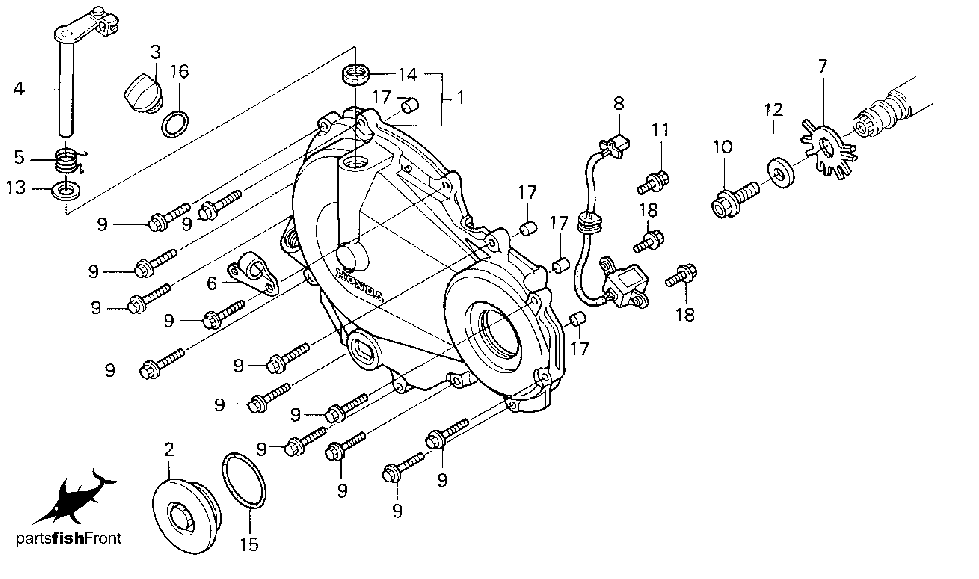

right crankcase cover
| no. | description | part number | list price
|
|---|
| 1
| COVER COMP., R.
| 11330-MBW-670
| $147.88
|
| 2
| CAP (45MM)
| 11332-MM5-000
| $9.83
|
| 3
| CAP, OIL FILTER
| 15611-KA4-710
| $8.95
|
| 4
| LEVER COMP., CLUTCH
| 22810-MBW-000
| $28.03
|
| 5
| SPRING, CLUTCH LEVER
| 22815-MBW-000
| $1.98
|
| 6
| RECEIVER
| 22821-MBW-000
| $5.06
|
| 7
| ROTOR, PULSE
| 30291-MBW-000
| $6.63
|
| 8
| GENERATOR, PULSE
| 30300-MBW-610
| $28.35
|
| 9
| BOLT, FLANGE (6X28)
| 90004-GHB-680
| $1.92
|
| 10
| BOLT (10X25)
| 90013-430-000
| $4.68
|
| 11
| BOLT-WASHER (6X12)
| 90021-MM5-000
| $2.89
|
| 12
| WASHER (10.5X27)
| 90405-KT7-000
| $3.17
|
| 13
| WASHER, BRAKE ARM
| 90525-GC4-700
| $1.25
|
| 14
| OIL SEAL (12X18X5)
| 91204-KK0-003
| $2.86
|
| 15
| O-RING (48.1X3.6)
| 91301-ML7-003
| $2.23
|
| 16
| O-RING (18X3)
| 91307-KF0-003
| $1.51
|
| 17
| PIN, DOWEL (8X14)
| 94301-08140
| $0.85
|
| 18
| BOLT, FLANGE (6X16)
| 95701-06016-00
| $0.55
|
