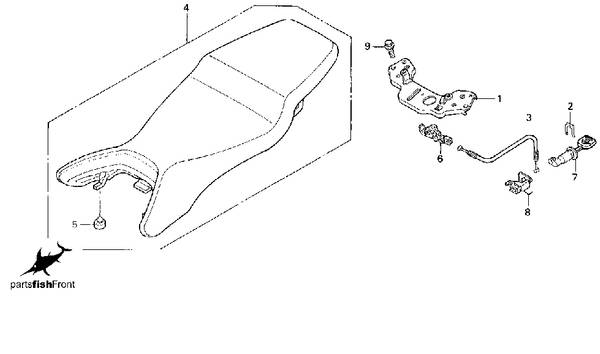

seat
| no. | description | part number | list price |
|---|---|---|---|
| 1 | PLATE COMP., CROSS | 50247-MBW-000 | $36.00 |
| 2 | SPRING | 75581-GN8-920 | $2.71 |
| 3 | CABLE, SEAT LOCK | 77156-MBW-000 | $3.32 |
| 4 | SEAT ASSY., DOUBLE | 77200-MBW-670 | $197.83 |
| 5 | RUBBER, SEAT SETTING | 77206-GF0-000 | $3.08 |
| 6 | HOOK, SEAT CATCH | 77220-KY6-000 | $25.14 |
| 7 | KEY, SEAT LOCK | 77234-MBL-611 | $16.88 |
| 8 | STAY | 77242-MAT-000 | $4.49 |
| 9 | BOLT, FLANGE (8X18) | 96300-08018-00 | $0.88 |
