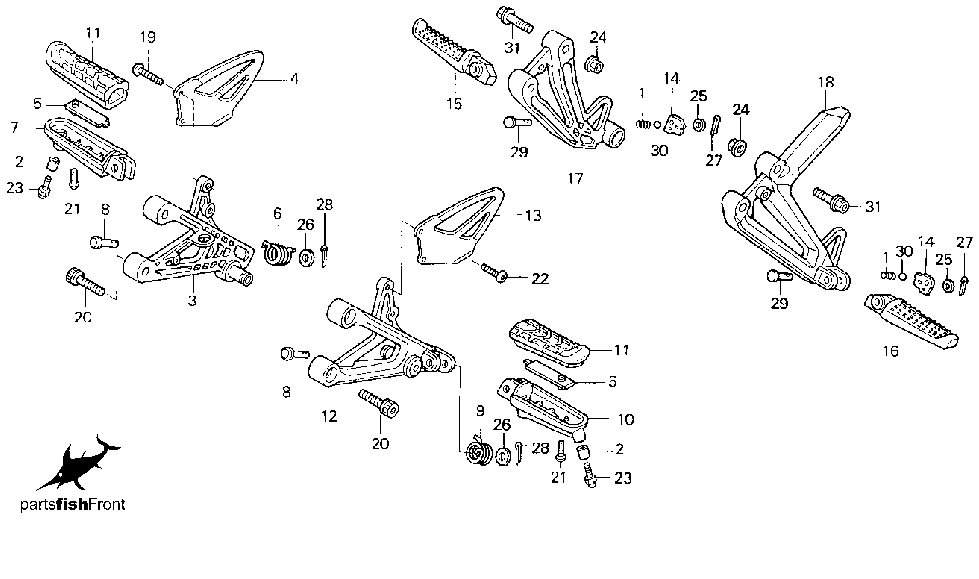

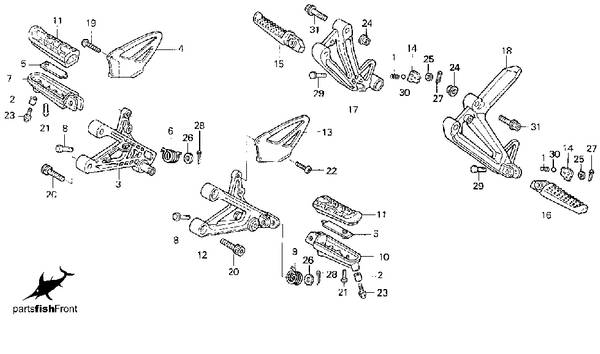

2000 Honda CBR 600 F4 partsfiche
step
| no. | description | part number | list price
|
|---|
| 1
| SPRING
| 28333-300-000
| $1.60
|
| 2
| COLR, SPECIAL (6X14)
| 30514-MZ7-000
| $2.14
|
| 3
| HOLDER, R. *NH35M*
| 50600-MBW-000ZA
| $50.52
|
| 4
| GUARD, R. STEP
| 50607-MBW-000
| $9.98
|
| 5
| PLATE, STEP SETTING
| 50609-MBW-000
| $3.06
|
| 6
| SPRING, R.
| 50617-445-840
| $3.06
|
| 7
| ARM, R. MAIN STEP
| 50635-MBW-000
| $32.22
|
| 8
| PIN, STEP BAR
| 50639-ML0-010
| $2.94
|
| 9
| SPRING, L.
| 50644-445-840
| $3.06
|
| 10
| ARM, L. MAIN STEP
| 50645-MBW-000
| $32.22
|
| 11
| RUBBER, MAIN STEP
| 50661-MBW-000
| $5.12
|
| 12
| HOLDER, L. *NH35M*
| 50700-MBW-000ZA
| $50.52
|
| 13
| GUARD, L. STEP
| 50707-MBW-000
| $9.98
|
| 14
| PLATE
| 50718-KT7-761
| $2.25
|
| 15
| BAR, R. PILLION STEP
| 50720-KT7-760
| $38.12
|
| 16
| BAR, L. PILLION STEP
| 50730-KT7-760
| $38.12
|
| 17
| HOLDER, R. *NH35M*
| 50750-MBW-000ZA
| $49.98
|
| 18
| HOLDER, L. *NH35M*
| 50760-MBW-000ZA
| $49.98
|
| 19
| BOLT, SPECIAL (6X25)
| 90085-MBW-000
| $2.03
|
| 20
| BOLT, SOCKET (8X25)
| 90105-MBW-000
| $1.74
|
| 21
| BOLT, SPECIAL (5X14)
| 90118-MBW-000
| $1.74
|
| 22
| SCREW, PAN (6X14)
| 90118-MR1-000
| $1.80
|
| 23
| BOLT, CAP (6X22)
| 92501-06022-0A
| $1.45
|
| 24
| NUT, FLANGE (8MM)
| 94050-08000
| $0.54
|
| 25
| WASHER, PLAIN (6MM)
| 94101-06000
| $0.18
|
| 26
| WASHER, PLAIN (8MM)
| 94102-08000
| $0.32
|
| 27
| PIN, SPLIT (1.6X12)
| 94201-16120
| $0.31
|
| 28
| PIN, SPLIT (2.0X15)
| 94201-20150
| $0.20
|
| 29
| PIN C
| 95015-83000
| $1.42
|
| 30
| BALL (#8) (1/4)
| 96211-08000
| $0.55
|
| 31
| BOLT, FLANGE (8X35)
| 96300-08035-00
| $0.98
|
