2000 Honda CBR 600 F4 partsfiche

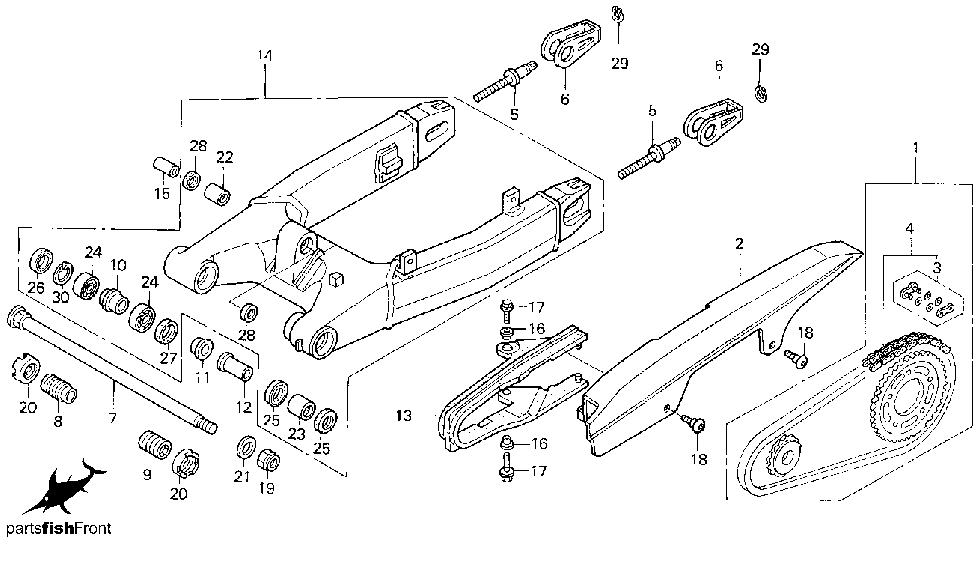

swingarm
| no. | description | part number | list price
|
|---|
| 1
| CHAIN KIT, DRIVE
| 06406-MBW-670
| $194.88
|
| 2
| CASE, DRIVE CHAIN
| 40510-MBW-000
| $40.71
|
| 3
| MASTER LINK SET
| 40535-MAL-G01
| $4.88
|
| 4
| CHAIN SET, DRIVE
| 06405-MAL-P00
| $127.34
|
| 5
| BOLT, CHAIN ADJ.
| 40542-KV3-700
| $4.32
|
| 6
| ADJUSTER, CHAIN
| 40543-MAS-000
| $12.92
|
| 7
| BOLT, SWINGARM PIVOT
| 52101-MBW-000
| $35.00
|
| 8
| BOLT, R.
| 52108-MBW-000
| $16.43
|
| 9
| BOLT, L.
| 52109-MBW-000
| $15.43
|
| 10
| COLLAR
| 52141-MBB-000
| $7.82
|
| 11
| COLLAR, R. PIVOT
| 52141-MBW-000
| $7.51
|
| 12
| COLLAR, L.
| 52143-MBW-000
| $12.66
|
| 13
| SLIDER, CHAIN
| 52170-MBW-000
| $32.55
|
| 14
| SWINGARM SUB-ASSY.
| 52200-MBW-000
| $520.78
|
| 15
| COLLAR
| 52463-MAL-G00
| $6.38
|
| 16
| COLLAR
| 81312-GJ5-000
| $1.80
|
| 17
| BOLT, FLANGE (6X18)
| 90105-MY9-000
| $1.51
|
| 18
| SCREW, PAN (6X11)
| 90106-KY2-701
| $2.40
|
| 19
| NUT, U (18MM)
| 90305-KZ4-891
| $8.20
|
| 20
| NUT, RR.
| 90355-469-000
| $9.55
|
| 21
| WASHER (18X32X2)
| 90401-KZ4-890
| $2.57
|
| 22
| BEARING, NEEDLE
| 91071-KV3-005
| $15.00
|
| 23
| BEARING, NEEDLE
| 91071-MR7-003
| $13.98
|
| 24
| BEARING (20X37X9)
| 91072-MR7-003
| $9.85
|
| 25
| DUST SEAL (28X37X4)
| 91202-MR7-003
| $3.60
|
| 26
| DUST SEAL (26X37X5)
| 91214-MR7-003
| $3.60
|
| 27
| DUST SEAL (27X34X4)
| 91261-KZ3-861
| $4.37
|
| 28
| DUST SEAL (17X24X5)
| 91262-KV3-831
| $3.48
|
| 29
| CIRCLIP (10MM)
| 94511-10000
| $0.45
|
| 30
| CIRCLIP (37MM)
| 94520-37000
| $1.06
|
