2000 Honda CBR 600 F4 partsfiche

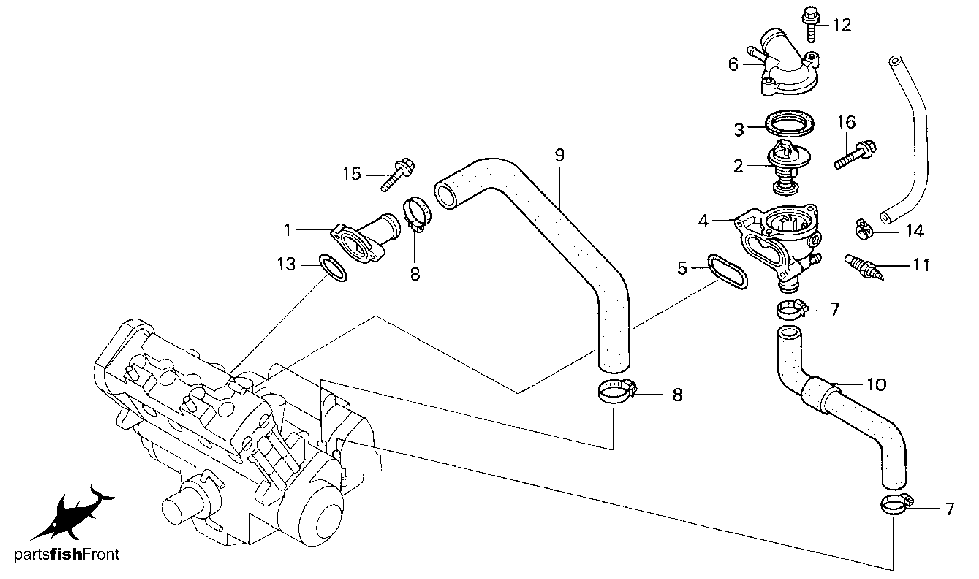

thermostat
| no. | description | part number | list price
|
|---|
| 1
| JOINT, WATER
| 19063-MBW-000
| $20.83
|
| 2
| THERMOSTAT
| 19300-MBW-003
| $29.09
|
| 3
| RUBBER, THERMOSTAT
| 19305-KV3-010
| $3.42
|
| 4
| CASE, THERMOSTAT
| 19311-MBW-305
| $33.29
|
| 5
| GASKET
| 19312-MBW-000
| $2.06
|
| 6
| COVER, THERMOSTAT
| 19315-MBW-000
| $26.65
|
| 7
| CLAMP, WATER HOSE
| 19505-KS6-700
| $5.94
|
| 8
| CLAMP (24-32MM)
| 19516-ML7-691
| $7.86
|
| 9
| HOSE A, WATER
| 19525-MBW-000
| $8.28
|
| 10
| HOSE B, WATER
| 19526-MBW-000
| $10.05
|
| 11
| SENDING UNIT
| 37750-PC1-004
| $35.17
|
| 12
| BOLT (6X23) (CT200)
| 90018-ZE1-000
| $0.97
|
| 13
| O-RING (30MM)
| 91356-425-003
| $2.02
|
| 13
| O-RING (29.7X2.4)
| 91356-425-005
| $2.02
|
| 14
| CLIP, TUBE (D12)
| 95002-41200-08
| $0.91
|
| 15
| BOLT, FLANGE (6X25)
| 95701-06025-00
| $0.65
|
| 16
| BOLT, FLANGE (6X35)
| 95701-06035-00
| $0.60
|
