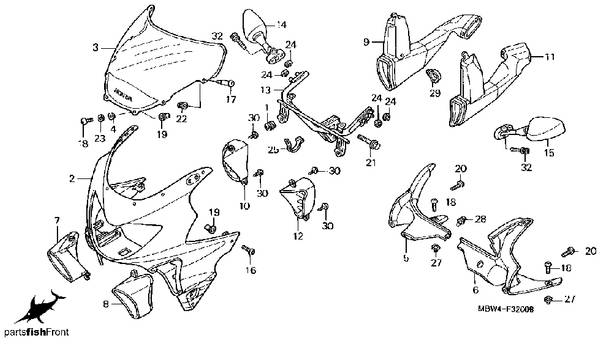

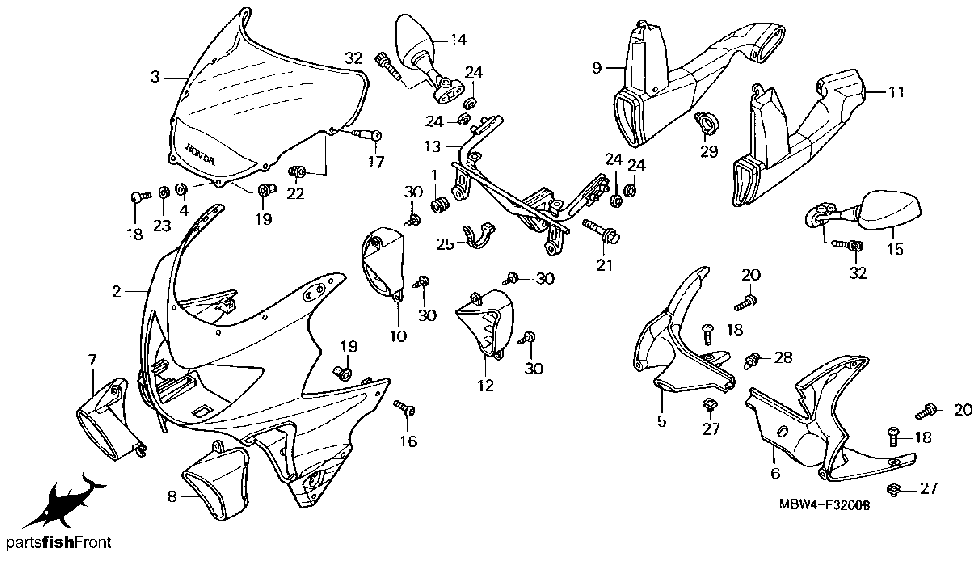

upper cowl
| no. | description | part number | list price |
|---|---|---|---|
| 1 | RUBBER | 19051-KA4-000 | $2.37 |
| 2 | COWL (UPPER) (TYPE2, Sunrise Yellow) | 64100-MBW-670ZB | $553.51 |
| 2 | COWL (UPPER) (TYPE3) | 64100-MBW-A00ZA | $554.12 |
| 2 | COWL (UPPER) (TYPE4) | 64100-MBW-A00ZB | $554.12 |
| 3 | WINDSCREEN SET | 64200-MBW-000ZA | $149.92 |
| 4 | WASHER | 64205-166-610 | $1.17 |
| 5 | PNL, R. METER *NH1* | 64215-MBW-000ZA | $28.17 |
| 6 | PNL, L. METER *NH1* | 64216-MBW-000ZA | $27.17 |
| 7 | COVER, R. FR. *NH1* | 64230-MBW-000ZA | $10.88 |
| 8 | COVER, L. FR. *NH1* | 64240-MBW-000ZA | $10.88 |
| 9 | DUCT, R. AIR | 64330-MBW-000 | $43.34 |
| 10 | GRILL, R. AIR DUCT | 64335-MBW-000 | $7.32 |
| 11 | DUCT, L. AIR | 64380-MBW-000 | $43.34 |
| 12 | GRILL, L. AIR DUCT | 64385-MBW-000 | $7.32 |
| 13 | STAY, COWL (UPPER) | 64501-MBW-000 | $94.46 |
| 14 | MIRROR, R. BACK | 88110-MBW-003 | $72.69 |
| 15 | MIRROR, L. BACK | 88120-MBW-003 | $72.69 |
| 16 | SCREW, PAN (5X20) | 90103-MBG-000 | $1.00 |
| 17 | SCREW, SPECIAL (5MM) | 90109-MBW-000 | $1.40 |
| 18 | SCREW, TRUSS (5X16) | 90109-SB6-000 | $2.48 |
| 19 | NUT (5MM) | 90111-KW3-003 | $2.55 |
| 20 | SCREW, VISOR SETTING | 90114-KW7-900 | $1.74 |
| 21 | BOLT, FLANGE (8X32) | 90120-MAS-E11 | $1.97 |
| 22 | NUT (5MM) | 90167-SA0-980 | $2.77 |
| 23 | WASHER, THRUST (5MM) | 90504-964-000 | $0.95 |
| 24 | WASHER, BUMPER | 90540-SA7-000 | $1.42 |
| 25 | BAND, WIRE | 90650-KV6-003 | $2.29 |
| 27 | NUT, CLIP (5MM) | 90677-GR1-003 | $2.55 |
| 28 | CLIP, BODY COVER | 90683-GR1-003 | $1.54 |
| 29 | CLIP *NH1L* | 91558-SD5-003 | $3.48 |
| 30 | SCREW, TAP (5X12) | 93903-25280 | $0.34 |
| 32 | BOLT, SOCKET (6X14) | 96600-06014-07 | $0.54 |
