2000 Honda CBR 600 F4 partsfiche

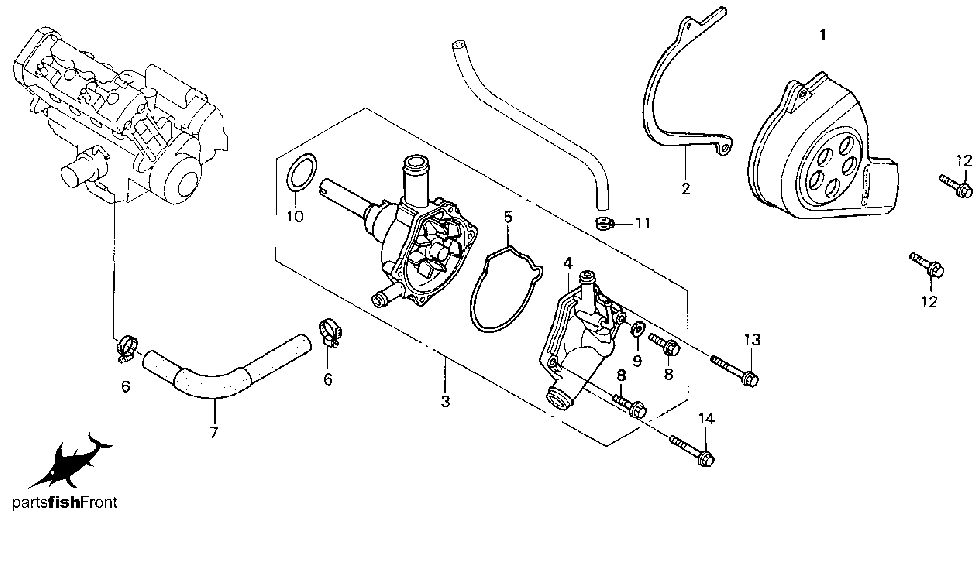

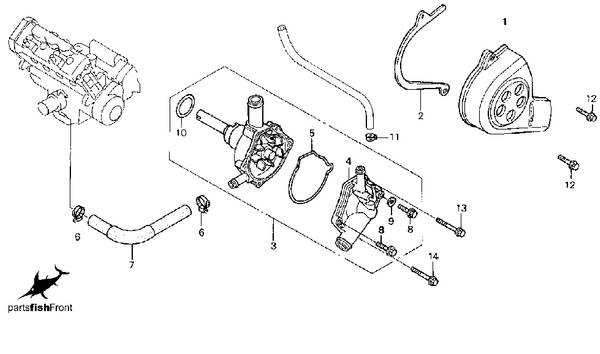

water pump
| no. | description | part number | list price
|
|---|
| 1
| COVER COMP., L. RR.
| 11350-MBW-000
| $23.35
|
| 2
| PLATE
| 11355-MBW-000
| $3.86
|
| 3
| WATER PUMP COMP.
| 19200-MBW-306
| $115.03
|
| 4
| COVER, WATER PUMP
| 19220-MBW-010
| $47.34
|
| 5
| GASKET, WATER PUMP
| 19226-MBW-000
| $3.46
|
| 6
| CLAMP (25MM)
| 19504-KY1-003
| $5.58
|
| 7
| HOSE C, WATER
| 19527-MBW-000
| $12.32
|
| 8
| BOLT, FLANGE (6X25)
| 90121-MV9-670
| $1.54
|
| 9
| WASHER (6.5MM)
| 90463-ML7-000
| $1.62
|
| 10
| O-RING (32.95X2.62)
| 91302-MB0-013
| $1.51
|
| 11
| CLAMP (D10.5)
| 91406-SL4-931
| $2.02
|
| 12
| BOLT, FLANGE (6X25)
| 96001-06025-07
| $0.65
|
| 13
| BOLT, FLANGE (6X45)
| 96001-06045-00
| $0.98
|
| 14
| BOLT, FLANGE (6X60)
| 96001-06060-00
| $0.98
|
