2000 Honda CBR 600 F4 partsfiche

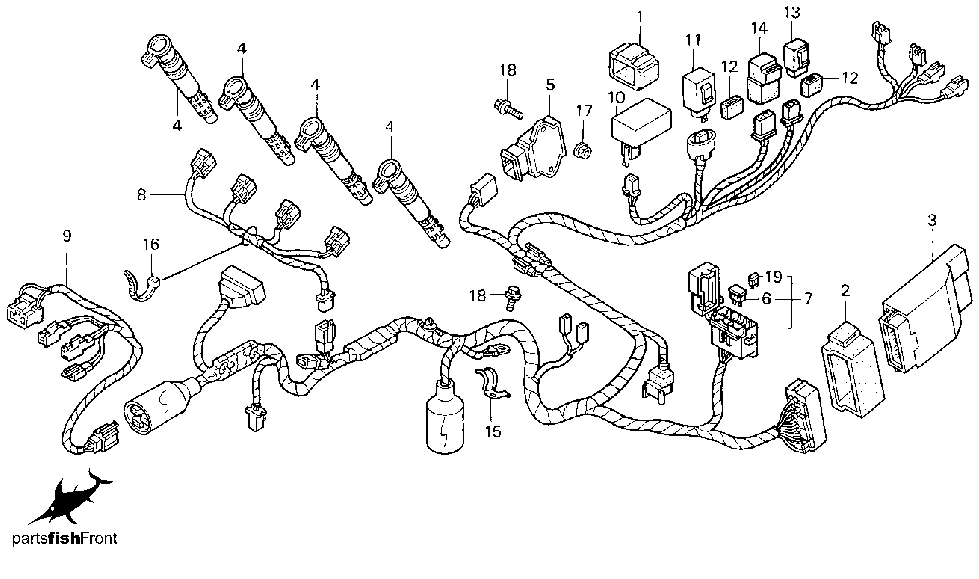

wire harness
| no. | description | part number | list price
|
|---|
| 1
| RUBBER
| 30401-GE8-000
| $3.34
|
| 2
| CUSHION, SPARK UNIT
| 30405-MBW-600
| $8.57
|
| 3
| MODULE, IGN CONT
| 30410-MBW-771
| $302.15
|
| 4
| COIL, CAP & IGNITION
| 30700-MBW-611
| $38.34
|
| 5
| RECTIFIER, REGULATE
| 31600-MV4-010
| $135.95
|
| 6
| DIODE, THREE-WAY
| 31730-MAS-601
| $6.15
|
| 7
| WIRE HARNESS
| 32100-MBW-770
| $195.46
|
| 8
| SUB-HARNESS
| 32102-MBW-610
| $25.75
|
| 9
| SUB-HARNESS, FR.
| 32103-MBW-670
| $11.77
|
| 10
| RELAY, FUEL CUT
| 36100-MN4-008
| $47.20
|
| 11
| RELAY, TURN SIGNAL
| 38301-KK9-952
| $33.58
|
| 12
| SUSPENSION
| 38306-KK4-000
| $2.20
|
| 13
| RELAY COMP. (10A)
| 38365-MN5-811
| $21.82
|
| 14
| RELAY, POWER (5P)
| 39793-SV4-003
| $24.91
|
| 15
| CLAMP, HARNESS
| 50180-MBW-000
| $2.88
|
| 16
| BAND, WIRE
| 90652-KT1-771
| $2.52
|
| 17
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 18
| BOLT, FLANGE (6X16)
| 96001-06016-00
| $0.55
|
| 19
| FUSE F (10A)
| 98200-41000
| $0.43
|
