1998 Honda VFR 800 Interceptor partsfiche

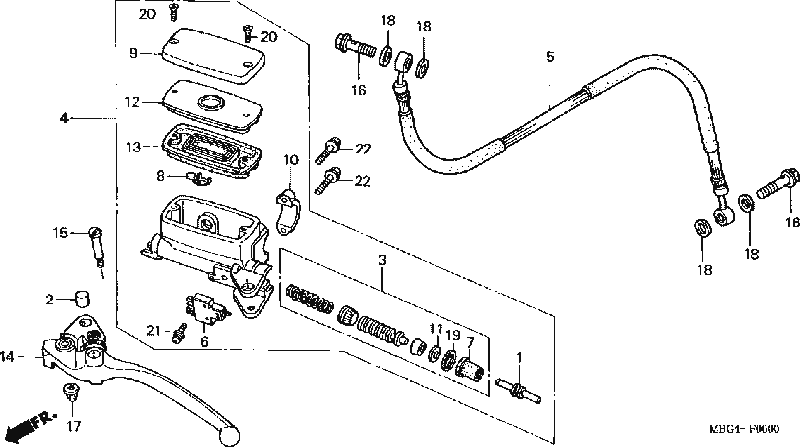

clutch master cylinder
| Part Number | Description | Part Number | Average Price
|
| 1
| ROD, PUSH
| 22884-MAT-E01
| $11.85
|
| 2
| BUSH
| 22885-MB0-006
| $7.93
|
| 3
| PISTON SET
| 22886-MAT-E01
| $46.56
|
| 4
| M/CYL SUB-ASSY
| 22890-MAT-006
| $232.76
|
| 5
| HOSE, CLUTCH
| 22900-MBG-000
| $55.18
|
| 6
| SWITCH ASSY., CLUTCH
| 35330-MB0-003
| $14.33
|
| 7
| BOOT
| 45504-410-003
| $7.45
|
| 8
| PROTECTOR
| 45512-MA6-006
| $2.71
|
| 9
| CAP, MASTER CYLINDER
| 45513-MM5-006
| $13.71
|
| 10
| HOLDER
| 45517-166-006
| $8.31
|
| 11
| PLATE, STOPPER
| 45518-MB0-006
| $1.42
|
| 12
| PLATE, DIAPHRAGM
| 45518-MM5-006
| $6.53
|
| 13
| DIAPHRAGM
| 45520-MM5-006
| $9.25
|
| 14
| LEVER, L. HANDLE
| 53180-MZ1-791
| $33.31
|
| 15
| BOLT, R.
| 90114-MA5-671
| $5.78
|
| 16
| BOLT, OIL (10X22)
| 90145-MS9-612
| $4.25
|
| 17
| NUT, CAP (6MM)
| 90201-415-000
| $1.58
|
| 18
| WASHER, OIL BOLT
| 90545-300-000
| $1.95
|
| 19
| CIRCLIP
| 90651-MA5-671
| $1.69
|
| 19
| CIRCLIP (18MM)
| 90651-377-003
| $1.07
|
| 20
| SCREW, FLAT (4X12)
| 93600-04012-0G
| $0.37
|
| 21
| SCREW-WASHER (4X12)
| 93893-04012-07
| $0.55
|
| 22
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.93
|
