1998 Honda VFR 800 Interceptor partsfiche

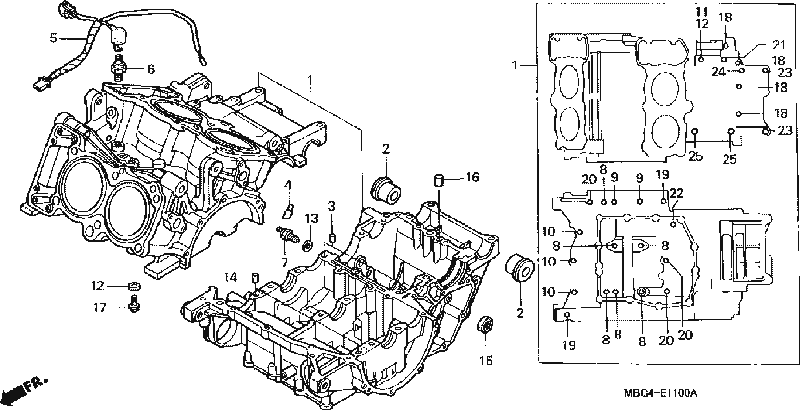

crankcase
| Part Number | Description | Part Number | Average Price
|
| 1
| CRANKCASE SET
| 11000-MBG-000
| $1,678.18
|
| 2
| COLLAR, PIVOT
| 11105-MBG-000
| $12.04
|
| 3
| ORIFICE (1.2MM)
| 15515-KT8-000
| $5.24
|
| 4
| JET, OIL (0.7MM)
| 15516-MBG-000
| $7.76
|
| 5
| SUB-HARNESS, ENGINE
| 32109-MBG-000
| $28.73
|
| 6
| SWITCH, OIL PRESSURE
| 35500-MJ4-024
| $25.98
|
| 7
| SWITCH, NEUTRAL
| 35600-KE8-003
| $11.55
|
| 8
| BOLT, FLANGE (9X90)
| 90014-MBG-003
| $7.53
|
| 9
| BOLT, FLANGE (9X105)
| 90016-MBG-003
| $7.53
|
| 10
| BOLT, FLANGE (7X30)
| 90017-MBG-000
| $1.60
|
| 11
| BOLT, FLANGE (6X85)
| 90017-MW4-000
| $3.00
|
| 12
| WASHER (6.5MM)
| 90463-ML7-000
| $1.82
|
| 13
| WASHER, OIL BOLT
| 90545-300-000
| $1.95
|
| 14
| PIN, DOWEL (10X16)
| 90701-MV9-670
| $2.71
|
| 15
| OIL SEAL (8X25X8)
| 91204-MB0-013
| $2.56
|
| 16
| PIN, DOWEL (8X14)
| 94302-08140
| $0.88
|
| 17
| BOLT, FLANGE (6X12)
| 95701-06012-00
| $0.57
|
| 18
| BOLT, FLANGE (6X40)
| 95701-06040-00
| $0.70
|
| 19
| BOLT, FLANGE (6X50)
| 95701-06050-00
| $0.83
|
| 20
| BOLT, FLANGE (6X60)
| 95701-06060-00
| $0.83
|
| 21
| BOLT, FLANGE (6X65)
| 95701-06065-00
| $0.93
|
| 22
| BOLT, FLANGE (6X70)
| 95701-06070-00
| $0.92
|
| 23
| BOLT, FLANGE (10X55)
| 95701-10055-00
| $0.93
|
| 24
| BOLT, FLANGE (10X65)
| 95701-10065-00
| $1.23
|
| 25
| BOLT, FLANGE (10X75)
| 95701-10075-00
| $1.55
|
