1998 Honda VFR 800 Interceptor partsfiche

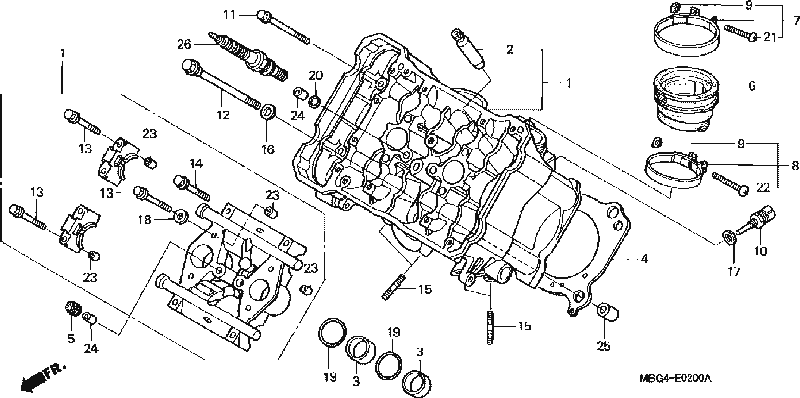

cylinder head front
| Part Number | Description | Part Number | Average Price
|
| 1
| CYLINDER HEAD, FR.
| 12010-MBG-000
| $657.78
|
| 2
| GUIDE, VALVE
| 12204-MW4-305
| $17.44
|
| 3
| COLLAR (25MM)
| 12217-MBG-000
| $5.58
|
| 4
| GASKET, FR. CYL HD
| 12251-MW4-000
| $50.76
|
| 5
| GASKET C, HEAD COVER
| 12396-MBG-000
| $3.15
|
| 6
| INSULATOR
| 16211-MBG-000
| $11.49
|
| 7
| BAND, INSULATOR
| 16217-MBG-000
| $3.71
|
| 8
| BAND B, INSULATOR
| 16218-MV9-670
| $6.11
|
| 9
| NUT, SQUARE (5MM)
| 16222-MV4-300
| $1.22
|
| 10
| SENSOR ASSY.
| 37870-MBG-003
| $32.95
|
| 11
| BOLT, FLANGE (6X77)
| 90004-PR0-000
| $3.05
|
| 12
| BOLT, FLANGE (9X98)
| 90008-ML7-920
| $7.20
|
| 13
| BOLT, FLANGE (6X48)
| 90018-425-000
| $2.09
|
| 14
| BOLT, FLG (6X39.5)
| 90019-MA6-000
| $1.82
|
| 15
| BOLT, STUD (6X22)
| 90035-MW4-000
| $1.95
|
| 16
| WASHER (9MM)
| 90445-MM4-000
| $2.24
|
| 17
| WASHER (12MM)
| 90454-MC7-000
| $1.55
|
| 18
| WASHER (6.5MM)
| 90463-ML7-000
| $1.82
|
| 19
| O-RING (24.5X1.9)
| 91307-PY4-003
| $1.40
|
| 20
| O-RING (9.8X1.9)
| 91317-P4V-004
| $1.35
|
| 21
| SCREW, PAN (5X25)
| 93500-05025-0H
| $0.33
|
| 22
| SCREW, PAN (5X28)
| 93500-05028-0G
| $0.33
|
| 23
| DOWEL PIN (8X14)
| 94301-08140
| $0.88
|
| 24
| DOWEL PIN (10X16)
| 94301-10160
| $1.05
|
| 25
| DOWEL PIN (12X20)
| 94301-12200
| $1.05
|
| 26
| SPARK PLUG (CR8EH9)
| 98059-58916
| $7.14
|
| 26
| SPARK PLUG (CR9EH9)
| 98059-59910
| $7.14
|
| 26
| SPARK PLUG (U24FER9)
| 98059-58926
| $7.14
|
| 26
| SPARK PLUG (U27FER9)
| 98059-59926
| $7.14
|
