1998 Honda VFR 800 Interceptor partsfiche

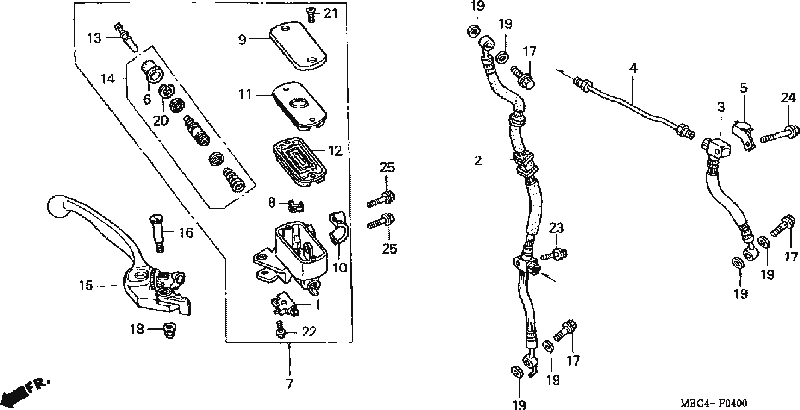

front brake master cylinder
| Part Number | Description | Part Number | Average Price
|
| 1
| SWITCH, FR. STOP
| 35340-MM5-600
| $12.45
|
| 2
| HOSE, R. FR.
| 45124-MBG-003
| $47.51
|
| 3
| HOSE, L. FR.
| 45125-MBG-003
| $18.67
|
| 4
| PIPE
| 45130-MBG-000
| $10.27
|
| 5
| CLAMP
| 45158-MBG-000
| $3.75
|
| 6
| BOOT
| 45504-410-003
| $7.45
|
| 7
| M/CYL SUB-ASSY, FR.
| 45510-MAJ-G41
| $168.69
|
| 8
| PROTECTOR
| 45512-MA6-006
| $2.71
|
| 9
| CAP, MASTER CYLINDER
| 45513-MM5-006
| $13.71
|
| 10
| HOLDER
| 45517-166-006
| $8.31
|
| 11
| PLATE, DIAPHRAGM
| 45518-MM5-006
| $6.53
|
| 12
| DIAPHRAGM
| 45520-MM5-006
| $9.25
|
| 13
| ROD, PUSH
| 45525-MAJ-G41
| $12.89
|
| 14
| PISTON SET, FR.
| 45530-MAJ-G41
| $33.49
|
| 15
| LEVER, R. HANDLE
| 53170-MAT-006
| $24.29
|
| 16
| BOLT, R.
| 90114-MA5-671
| $5.78
|
| 17
| BOLT, OIL (10X22)
| 90145-MS9-612
| $4.25
|
| 18
| NUT, CAP (6MM)
| 90201-415-000
| $1.58
|
| 19
| WASHER, OIL BOLT
| 90545-300-000
| $1.95
|
| 20
| CIRCLIP
| 90651-MA5-671
| $1.69
|
| 21
| SCREW, FLAT (4X12)
| 93600-04012-0G
| $0.37
|
| 22
| SCREW-WASHER (4X12)
| 93893-04012-07
| $0.55
|
| 23
| BOLT, FLANGE (6X25)
| 95801-06025-07
| $0.65
|
| 24
| BOLT, FLANGE (6X40)
| 95801-06040-07
| $0.70
|
| 25
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.93
|
