1998 Honda VFR 800 Interceptor partsfiche

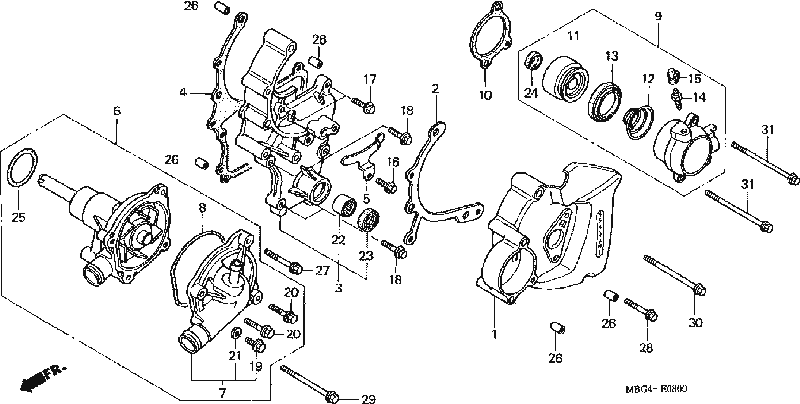

left crankcase cover
| Part Number | Description | Part Number | Average Price
|
| 1
| COVER ASSY., L.
| 11340-MBG-000
| $135.65
|
| 2
| PLATE
| 11365-MW4-000
| $6.42
|
| 3
| COVER, CHANGE
| 11630-MW4-000
| $81.11
|
| 4
| GASKET, CHANGE COVER
| 11632-MW4-000
| $15.26
|
| 5
| PLATE, CHANGE COVER
| 11633-MW4-000
| $7.00
|
| 6
| WATER PUMP
| 19200-MBG-000
| $130.84
|
| 7
| COVER, WATER PUMP
| 19220-MBG-000
| $57.87
|
| 8
| GASKET
| 19226-ML7-000
| $2.85
|
| 9
| CYLINDER, SLAVE
| 22860-MT7-000
| $108.95
|
| 10
| GASKET
| 22862-MW7-650
| $3.53
|
| 11
| PISTON
| 22863-MJ8-003
| $16.33
|
| 12
| SPRING
| 22864-MT7-006
| $9.40
|
| 13
| CUP, PISTON
| 22865-MJ8-003
| $7.05
|
| 14
| SCREW, BLEEDER
| 22866-MF2-711
| $3.25
|
| 15
| CAP, BLEEDER
| 43353-461-771
| $3.22
|
| 16
| BOLT, FLANGE (6X12)
| 90004-GHB-610
| $1.89
|
| 17
| BOLT, FLANGE (6X22)
| 90004-GHB-660
| $2.36
|
| 18
| BOLT, FLANGE (6X28)
| 90004-GHB-680
| $2.16
|
| 19
| BOLT (6X12) (CT200)
| 90013-883-000
| $1.20
|
| 20
| BOLT, FLANGE (6X25)
| 90121-MV9-670
| $1.73
|
| 21
| WASHER (6.5MM)
| 90463-ML7-000
| $1.82
|
| 22
| BEARING, NEEDLE
| 91101-121-691
| $21.36
|
| 23
| OIL SEAL (14X22X5)
| 91203-KK3-830
| $2.42
|
| 24
| OIL SEAL (8X18X5)
| 91209-MB0-003
| $2.56
|
| 25
| O-RING (32.95X2.62)
| 91302-MB0-013
| $1.69
|
| 26
| DOWEL PIN (8X14)
| 94301-08140
| $0.88
|
| 27
| BOLT, FLANGE (6X35)
| 96001-06035-00
| $0.91
|
| 29
| BOLT, FLANGE (6X75)
| 96001-06075-00
| $1.23
|
| 30
| BOLT, FLANGE (6X90)
| 96001-06090-07
| $1.28
|
| 31
| BOLT, FLANGE (6X95)
| 96001-06095-07
| $1.28
|
