1998 Honda VFR 800 Interceptor partsfiche

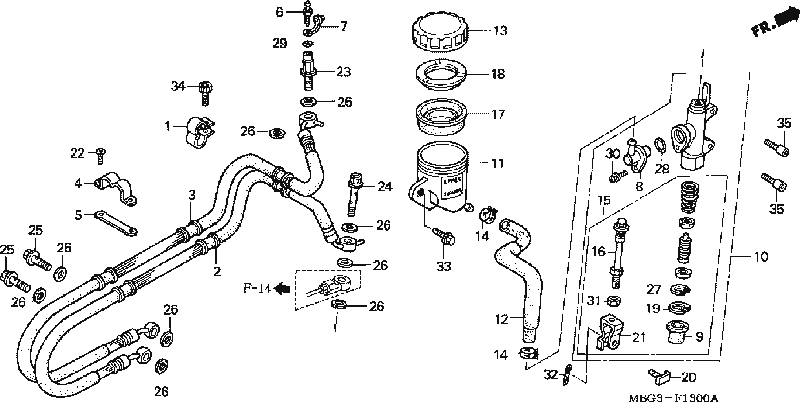

rear brake master cylinder
| Part Number | Description | Part Number | Average Price
|
| 1
| CLAMP, RR.
| 43156-MBG-000
| $8.76
|
| 2
| HOSE, RR. BRAKE MAIN
| 43310-MBG-003
| $35.65
|
| 3
| SUB-HOSE, RR. BRAKE
| 43311-MBG-003
| $39.64
|
| 4
| CLAMP, BRAKE HOSE
| 43312-MBG-000
| $3.89
|
| 5
| PLATE, BRAKE HOSE
| 43313-MBG-000
| $4.02
|
| 6
| SCREW, BLEEDER
| 43352-MG9-006
| $3.16
|
| 7
| CAP, BLEEDER
| 43353-461-771
| $3.22
|
| 7
| CAP, BLEEDER SCREW
| 43353-443-761
| $3.22
|
| 8
| CONNECTOR
| 43503-MB2-006
| $6.93
|
| 9
| BOOT
| 43504-MB2-006
| $6.15
|
| 10
| M/CYL SUB-ASSY, RR.
| 43510-MBG-006
| $95.82
|
| 11
| CUP
| 43511-MA6-006
| $24.80
|
| 12
| HOSE, RR.
| 43512-MBG-006
| $15.45
|
| 13
| CAP, OIL CUP
| 43513-MY1-006
| $18.00
|
| 14
| CLAMP
| 43514-445-771
| $9.53
|
| 15
| PISTON SET, RR.
| 43520-MBG-006
| $40.51
|
| 16
| ROD, PUSH
| 43530-MBG-006
| $14.85
|
| 17
| DIAPHRAGM
| 45520-300-000
| $5.51
|
| 18
| PLATE, DIAPHRAGM
| 45521-MJ6-006
| $2.56
|
| 19
| CIRCLIP
| 46182-500-013
| $2.23
|
| 20
| PIN, BRAKE ROD
| 46503-MAL-000
| $3.45
|
| 21
| JOINT, BRAKE ROD
| 46504-MAL-601
| $7.75
|
| 22
| SCREW, PAN (5X8)
| 90115-KV3-700
| $1.51
|
| 23
| BOLT B, OIL (10X22)
| 90145-MBG-003
| $7.45
|
| 24
| BOLT, OIL (10X34)
| 90145-MR8-014
| $4.22
|
| 25
| BOLT, OIL (10X22)
| 90145-MS9-612
| $4.25
|
| 26
| WASHER, OIL BOLT
| 90545-300-000
| $1.95
|
| 27
| CIRCLIP, PISTON
| 90651-MBG-006
| $1.73
|
| 28
| O-RING (14.8X2.4)
| 91212-422-006
| $1.47
|
| 29
| O-RING (5.8X1.9)
| 91355-MG9-006
| $2.04
|
| 30
| SCREW-WASHER (4X12)
| 93893-04012-07
| $0.55
|
| 31
| NUT, HEX. (8MM)
| 94002-08000-0S
| $0.50
|
| 32
| PIN, COTTER (2.0X12)
| 94201-20120
| $0.37
|
| 33
| BOLT, FLANGE (6X16)
| 95701-06016-07
| $0.49
|
| 33
| BOLT, FLANGE (6X20)
| 95701-06020-07
| $0.48
|
| 34
| BOLT, SOCKET (6X20)
| 96600-06020-07
| $0.67
|
| 35
| BOLT, SOCKET (6X25)
| 96700-06025-00
| $0.92
|
