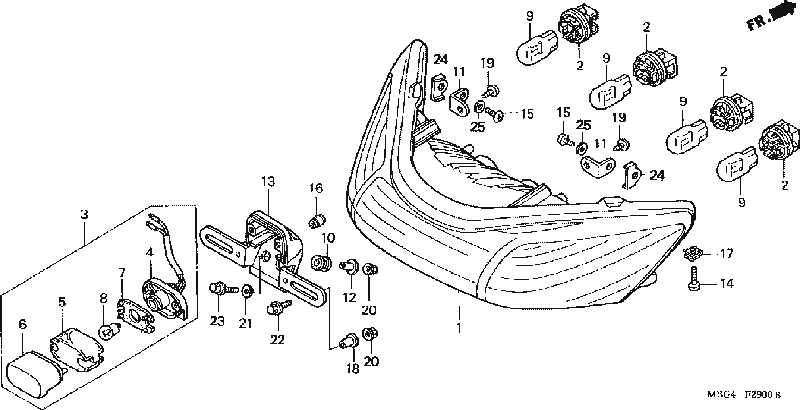

1998 Honda VFR 800 Interceptor partsfiche
rear combination light
| Part Number | Description | Part Number | Average Price
|
| 1
| UNIT, RR.
| 33710-MBG-671
| $188.64
|
| 2
| SOCKET
| 33720-GZ9-003
| $7.95
|
| 3
| LIGHT ASSY., LICENSE
| 33720-MAT-671
| $84.07
|
| 4
| BASE, LICENSE
| 33721-MAT-671
| $33.89
|
| 5
| LENS, LICENSE
| 33722-MZ0-710
| $11.20
|
| 6
| COVER, LICENSE LIGHT
| 33727-ME4-671
| $16.45
|
| 7
| GASKET, LENS
| 33729-MB1-003
| $3.76
|
| 8
| BULB (12V4CP)
| 34902-500-003
| $1.25
|
| 8
| BULB (12V8W)
| 34616-568-671
| $1.25
|
| 8
| BULB (12V8W4CP) (67)
| 34909-505-003
| $1.25
|
| 9
| BULB (12V21/5W)
| 34906-MBB-611
| $2.32
|
| 10
| RUBBER, FR.
| 61103-357-000
| $1.93
|
| 11
| STAY, TAILLIGHT SUB
| 77215-MBG-000
| $2.55
|
| 12
| COLLAR, RR. FENDER
| 80114-KE2-940
| $2.49
|
| 13
| BRKT, NUMBER PLATE
| 84701-ML7-670
| $21.64
|
| 14
| SCREW, PAN (5X15)
| 90150-MBG-000
| $1.45
|
| 15
| SCREW, SPECIAL (5MM)
| 90104-MBG-000
| $1.45
|
| 16
| NUT, SPECIAL (4MM)
| 90302-MB2-000
| $2.84
|
| 17
| NUT, SPRING (5MM)
| 90320-GC3-000
| $1.71
|
| 18
| WASHER (6X20)
| 90502-VA4-640
| $2.40
|
| 19
| SCREW, TAP (5X12)
| 93903-25210
| $0.37
|
| 20
| NUT, FLANGE (6MM)
| 94050-06000
| $0.57
|
| 21
| WASHER, PLAIN (6MM)
| 94103-06000
| $0.35
|
| 22
| BOLT, FLANGE (6X16)
| 95701-06016-00
| $0.58
|
| 23
| BOLT, FLANGE (6X25)
| 95701-06025-08
| $0.63
|
| 24
| SUB-STAY A
| 77217-MBG-000
| $2.38
|
| 25
| WASHER
| 90401-KM1-000
| $0.64
|
