1998 Honda VFR 800 Interceptor partsfiche

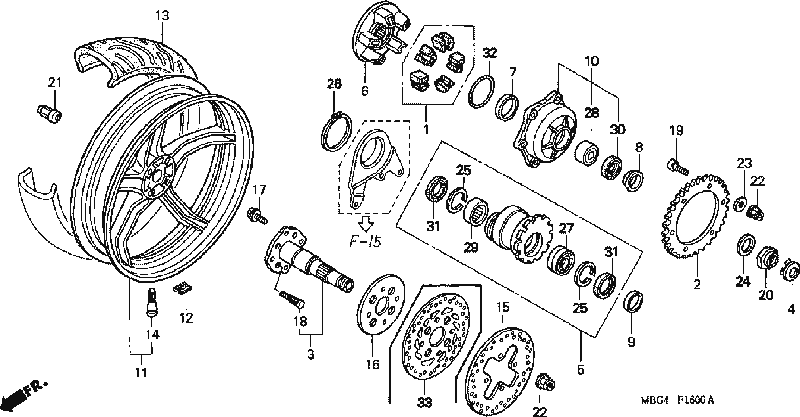

rear wheel
| Part Number | Description | Part Number | Average Price
|
| 1
| DAMPER SET, WHEEL
| 06410-MBG-000
| $22.27
|
| 2
| SPROCKET (43T)
| 41201-MBG-000
| $43.98
|
| 3
| AXLE, RR.
| 42300-MBG-000
| $132.40
|
| 4
| CAP, RR. AXLE
| 42303-MT4-000
| $6.05
|
| 5
| HOLDER, BEARING
| 42500-MBG-000
| $170.93
|
| 6
| FLANGE, FINAL DRIVEN
| 42605-MBG-000
| $85.91
|
| 7
| COLLAR, RR.
| 42621-MT4-000
| $11.42
|
| 8
| COLR, RR. AXLE SIDE
| 42622-MT4-000
| $12.62
|
| 9
| COLLAR, RR. AXLE
| 42623-MBG-000
| $13.02
|
| 10
| HUB, SPROCKET
| 42630-MBG-000
| $120.93
|
| 11
| WHEEL SUB-ASSY., RR.
| 42650-MBG-000
| $460.89
|
| 12
| WEIGHT (10G)
| 42704-MB0-000
| $8.35
|
| 12
| WEIGHT (20G)
| 42705-MB0-000
| $8.35
|
| 12
| WEIGHT (30G)
| 42706-MB0-000
| $8.35
|
| 13
| TIRE (180/55ZR17)
| 42711-MBB-004
| $198.60
|
| 14
| VALVE, RIM
| 42753-ML7-004
| $7.80
|
| 15
| DISK, RR. BRAKE
| 43251-MBG-000
| $236.98
|
| 16
| SPACER, RR. DISK
| 43252-MBG-000
| $39.65
|
| 17
| BOLT, FLANGE (8X19)
| 90102-MW4-000
| $3.04
|
| 18
| BOLT, WHEEL
| 90113-SA0-025
| $4.00
|
| 19
| BOLT (8X32)
| 90133-MBG-000
| $1.91
|
| 20
| NUT, LOCK (35MM)
| 90306-MZ7-000
| $9.76
|
| 21
| NUT, WHEEL
| 90307-MT4-010
| $6.11
|
| 22
| NUT, FLANGE (8MM)
| 90309-428-731
| $3.15
|
| 23
| WASHER (8MM)
| 90465-MC4-000
| $1.15
|
| 24
| WASHER (35)
| 90501-MBG-003
| $4.55
|
| 25
| CIRCLIP (62MM)
| 90651-ML0-731
| $3.44
|
| 26
| CIRCLIP (75MM)
| 90652-ML0-731
| $6.05
|
| 27
| BEARING (6908LU)
| 91061-ML0-731
| $29.11
|
| 28
| BEARING (35X55X10)
| 91061-MT4-003
| $54.45
|
| 29
| BEARING, RR.
| 91062-MR7-003
| $25.96
|
| 30
| DUST SEAL (45X55X5)
| 91258-ML7-003
| $5.27
|
| 31
| DUST SEAL (50X62X5)
| 91284-MR7-003
| $7.82
|
| 32
| O-RING (52X2)
| 91352-MN8-003
| $1.51
|
| 33
| DISK, RR. BRAKE
| 43251-MBG-E01
| $256.56
|
