1998 Honda VFR 800 Interceptor partsfiche

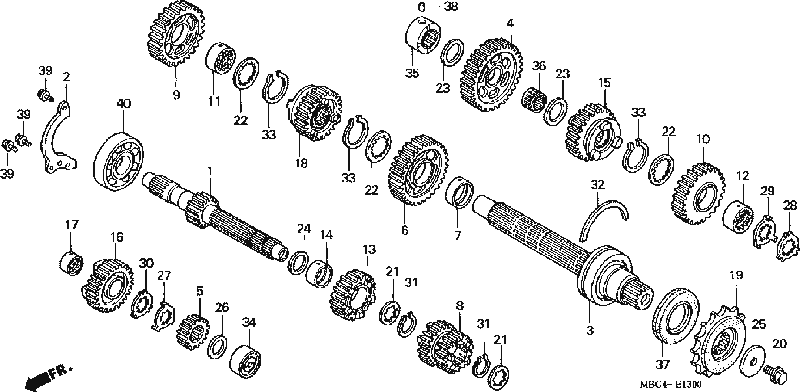

transmission
| Part Number | Description | Part Number | Average Price
|
| 1
| MAINSHAFT (13T)
| 23211-MBG-000
| $91.31
|
| 2
| PLATE
| 23212-ML7-000
| $7.05
|
| 3
| COUNTERSHAFT
| 23220-MBG-000
| $166.95
|
| 4
| GEAR (37T)
| 23421-MBG-000
| $81.76
|
| 5
| GEAR (16T)
| 23431-ML7-920
| $34.33
|
| 6
| GEAR (33T)
| 23441-ML7-000
| $86.05
|
| 7
| COLLAR (28MM)
| 23442-ML7-000
| $16.09
|
| 8
| GEAR (19T/21T)
| 23451-MBG-000
| $83.22
|
| 9
| GEAR (31T)
| 23461-MBG-000
| $71.40
|
| 10
| GEAR (28T)
| 23481-MBG-000
| $71.40
|
| 11
| COLLAR (28X9.6)
| 23482-MJ1-760
| $13.89
|
| 12
| COLLAR (28X13.5)
| 23482-MR7-000
| $17.82
|
| 13
| GEAR (26T)
| 23491-MZ7-000
| $97.89
|
| 14
| COLLAR (25X12)
| 23495-MB0-000
| $15.15
|
| 15
| GEAR (30T)
| 23501-MBG-000
| $77.31
|
| 16
| GEAR (28T)
| 23511-MBG-000
| $68.36
|
| 17
| COLR, SPLINE (25X16)
| 23512-MR7-000
| $17.71
|
| 18
| GEAR (29T)
| 23521-MBG-000
| $70.65
|
| 19
| SPROCKET (17T)
| 23801-MAT-000
| $44.98
|
| 20
| BOLT, SPECIAL (10MM)
| 90037-422-003
| $4.67
|
| 21
| WASHER (25X31X1.5)
| 90451-KY2-000
| $2.47
|
| 22
| WASHER (28X34X1.5)
| 90452-MR7-000
| $3.69
|
| 23
| WASHER B (22MM)
| 90455-ML7-000
| $3.15
|
| 24
| WASHER (25MM)
| 90456-MA6-000
| $2.02
|
| 25
| WASHER (10.2MM)
| 90459-438-000
| $3.76
|
| 26
| WASHER A (20MM)
| 90461-MC7-000
| $3.09
|
| 27
| WASHER, LOCK (25MM)
| 90462-MR7-000
| $6.73
|
| 28
| WASHER (28MM)
| 90463-MR7-000
| $6.22
|
| 29
| WASHER, LOCK (28MM)
| 90464-MR7-000
| $6.22
|
| 30
| WASHER (25MM)
| 90465-MR7-000
| $6.36
|
| 31
| CIRCLIP (25MM)
| 90601-107-000
| $2.33
|
| 32
| SET-RING (68MM)
| 90602-MR7-000
| $5.11
|
| 33
| CIRCLIP (28MM)
| 90602-MM5-000
| $2.33
|
| 34
| BEARING (20MM)
| 91021-MW4-003
| $32.35
|
| 35
| BEARING (22MM)
| 91023-MW4-003
| $37.07
|
| 36
| BEARING (22X26X11)
| 91026-MB4-003
| $18.24
|
| 37
| OIL SEAL (40X68X7.2)
| 91207-MR7-003
| $9.05
|
| 38
| PIN, DOWEL (8X10)
| 94302-08100
| $0.88
|
| 39
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.57
|
| 40
| BEARING (6305)
| 96100-63050-00
| $11.98
|
