1988-91 Honda Hawk GT partsfiche

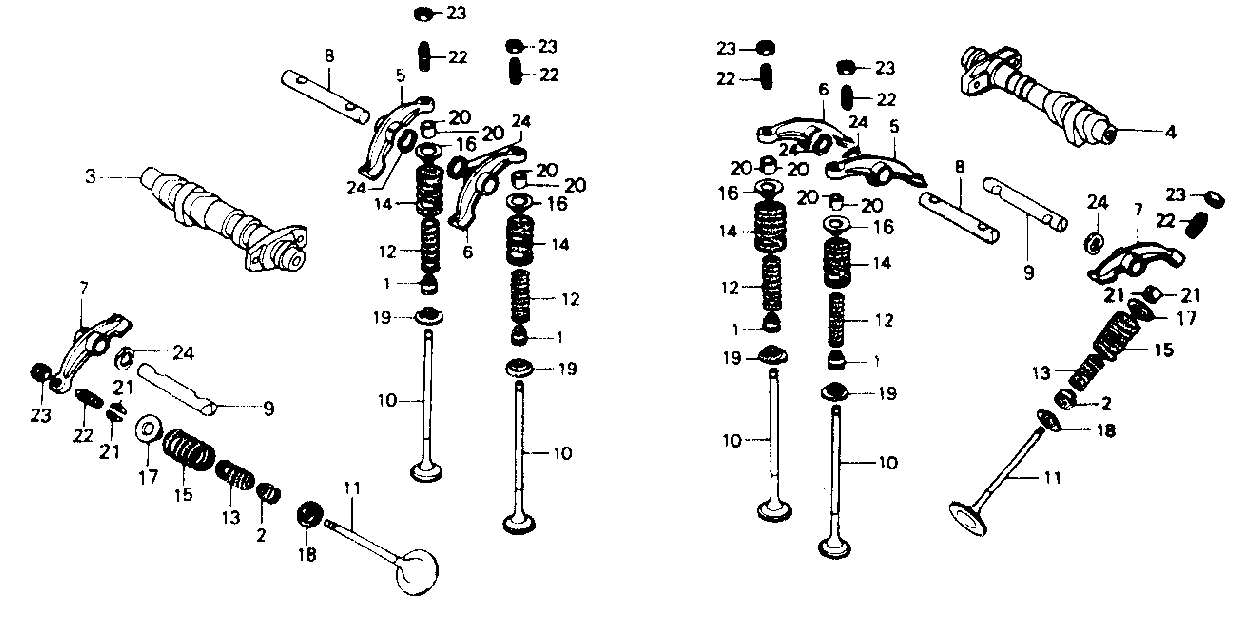

camshaft
| no. | description | part number | typical price
|
|---|
| 1
| SEAL, VALVE STEM
| 12208-413-003
| $7.43
|
| 2
| SEAL, VALVE STEM
| 12209-413-003
| $8.17
|
| 3
| CAMSHAFT COMP., FR.
| 14110-MS8-000
| $115.98
|
| 4
| CAMSHAFT COMP., RR.
| 14120-MS8-000
| $115.98
|
| 5
| ARM A, IN. ROCKER
| 14421-MR1-000
| $33.42
|
| 6
| ARM B, IN. ROCKER
| 14422-MR1-000
| $33.42
|
| 7
| ARM, EX. VLV ROCKER
| 14431-MR1-000
| $33.42
|
| 8
| SHAFT
| 14441-MF5-000
| $15.63
|
| 9
| SHAFT
| 14451-MF5-000
| $15.63
|
| 10
| VALVE, IN.
| 14711-MR1-000
| $16.85
|
| 11
| VALVE, EX.
| 14721-MR1-000
| $36.29
|
| 12
| SPRING, IN. VALVE
| 14751-MR1-003
| $3.72
|
| 13
| SPRING, EX. VALVE
| 14752-MR1-003
| $4.80
|
| 14
| SPRING, IN. VALVE
| 14761-MR1-003
| $5.25
|
| 15
| SPRING, EX. VALVE
| 14762-MR1-003
| $7.08
|
| 16
| RETAINER
| 14771-MF5-000
| $6.65
|
| 17
| RETAINER
| 14771-MR1-000
| $5.51
|
| 18
| SEAT, VALVE SPRING
| 14775-ME9-000
| $9.52
|
| 19
| SEAT, VALVE SPRING
| 14775-MF5-000
| $8.71
|
| 20
| COTTER, VALVE
| 14781-MB4-000
| $2.28
|
| 21
| COTTER, VALVE
| 14781-MB9-000
| $1.94
|
| 22
| SCREW
| 90014-MF5-000
| $3.68
|
| 23
| NUT, TAPPET ADJ.
| 90206-590-000
| $2.23
|
| 24
| WASHER, WAVE (12MM)
| 90402-428-000
| $1.15
|
